No.2 Check Engine Light Illuminates: Notes
DESCRIPTION & POSSIBLE CAUSE
| 2 |
CHECK ENGINE LIGHT ILLUMINATES |
| DESCRIPTION |
- Check engine light illuminates incorrectly.
|
| POSSIBLE CAUSE |
- Check engine light illuminates for emission-related concern (DTC is stored in PCM)

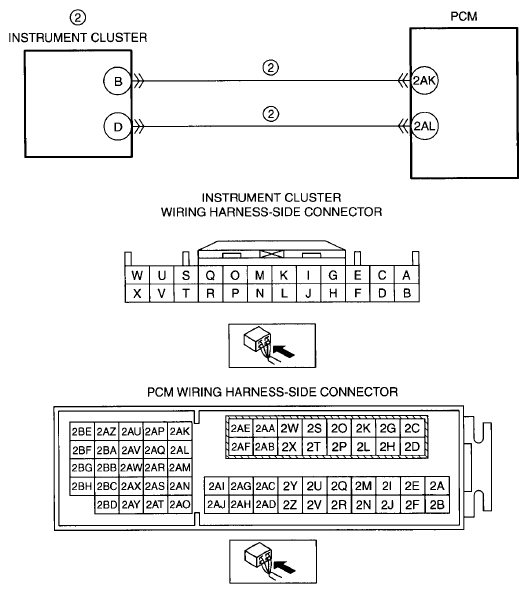

- Short to ground in wiring harness between the following terminals:
- Instrument cluster terminal B-PCM terminal 2AK
- Instrument cluster terminal D-PCM terminal 2AL
- Open circuit in wiring harness between the following terminals:
- Instrument cluster terminal B-PCM terminal 2AK
- Instrument cluster terminal D-PCM terminal 2AL
- Instrument cluster malfunction
NOTE:
- If check engine light blinks at a steady rate, a misfire condition could possibly exist.
|
|
|
