No.3 Will Not Crank: Notes
DESCRIPTION & POSSIBLE CAUSE
| 3 |
WILL NOT CRANK |
| DESCRIPTION |
|
| POSSIBLE CAUSE |
- Poor connection of push button start connector
- Instrument cluster or related wiring harness malfunction
- Immobilizer system malfunction
- PCM continuous memory DTC is stored
- Open circuit in wiring harness between the following terminals:
- Main relay terminal E-PCM terminal 2K
- Main relay terminal C-PCM terminal 2S, 1CK
- DLC-2-PCM terminal 2AK, 2AL
- Main relay malfunction (stuck open)
- Open or poor ground circuit
- Poor connection of vehicle body ground
- Battery malfunction
- Fuse malfunction
- Starter relay malfunction
- Starter relay related wiring harness malfunction
- Between starter relay terminal E and PCM terminal 2AZ
- Between starter relay terminal E and start stop unit terminal 1D
- Between start stop unit terminal 2V and starter relay terminal A

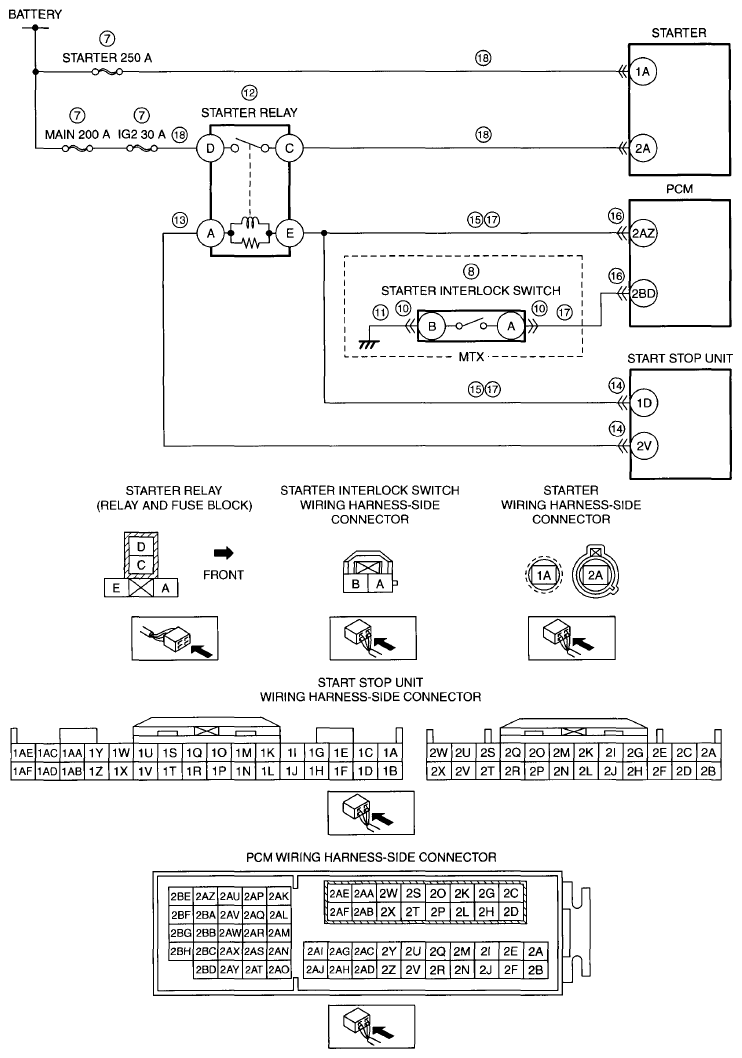

- Following circuit malfunction:
- Between battery positive terminal and starter terminal 1A
- Between battery positive terminal and starter relay terminal D
- Between starter relay terminal C and starter terminal 2A
- Starter interlock switch and related wiring harness malfunction (MTX)
- Starting system malfunction
- Following circuit and/or connector malfunction:
- Between push button start terminal A and start stop unit terminal 1AC
- Between push button start terminal B and start stop unit terminal 1AE
- Between PCM terminal 2AK and start stop unit terminal 2M
- Between PCM terminal 2AL and start stop unit terminal 2O
- Seized/hydro locked engine, flywheel (MTX) or drive plate (ATX)
|
|
|
CAUTION:
- Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
RELATED PIDs DESCRIPTION
| Monitor item (Definition) |
Unit/Condition |
Condition/Specification (Reference) |
| VPWR |
V |
- Displays the battery voltage
|
