Quick Diagnostic Chart

X: Applied

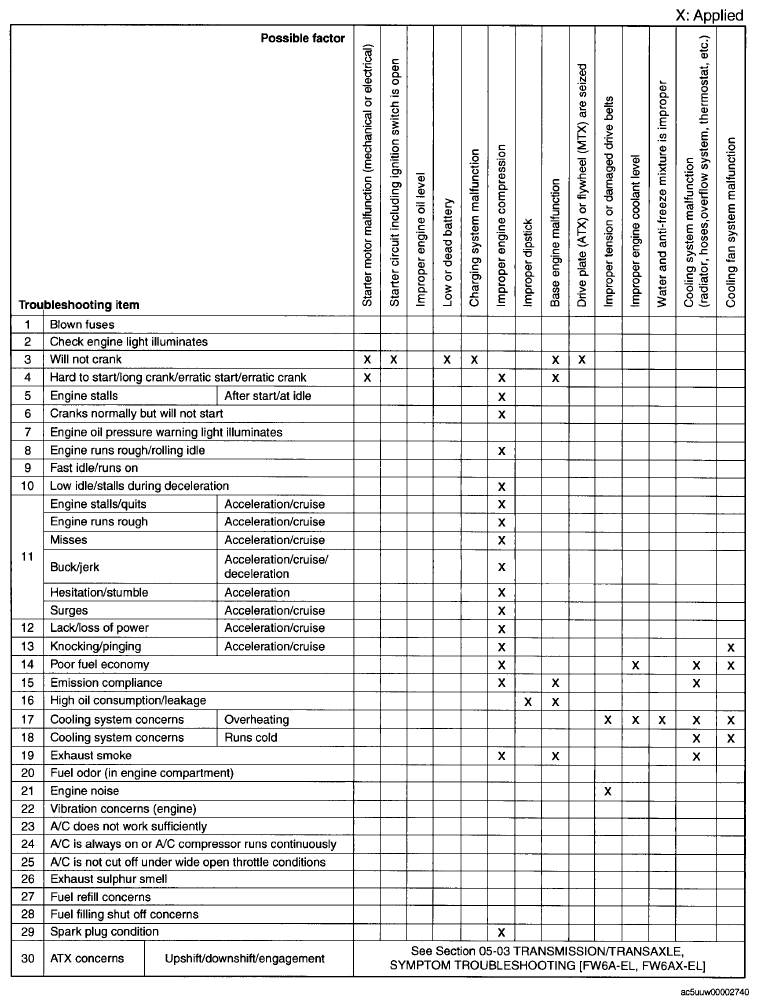

Fig 1: Quick Diagnostic Chart (1 Of 8)

G09074055

X: Applied

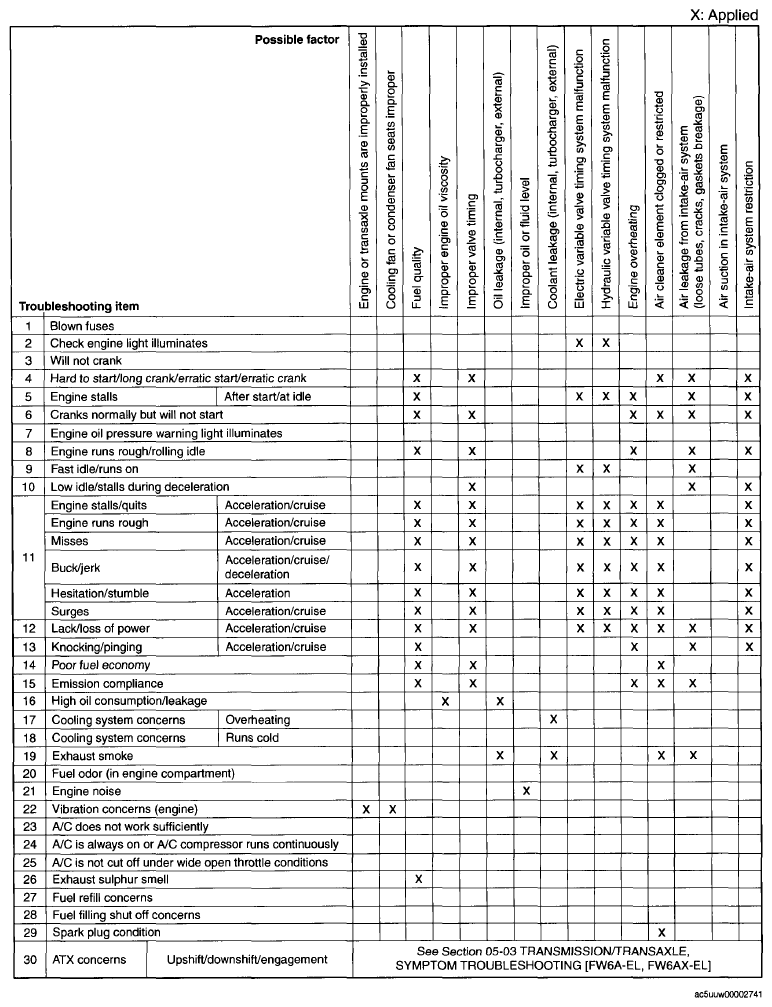

Fig 2: Quick Diagnostic Chart (2 Of 8)

G09074056

X: Applied

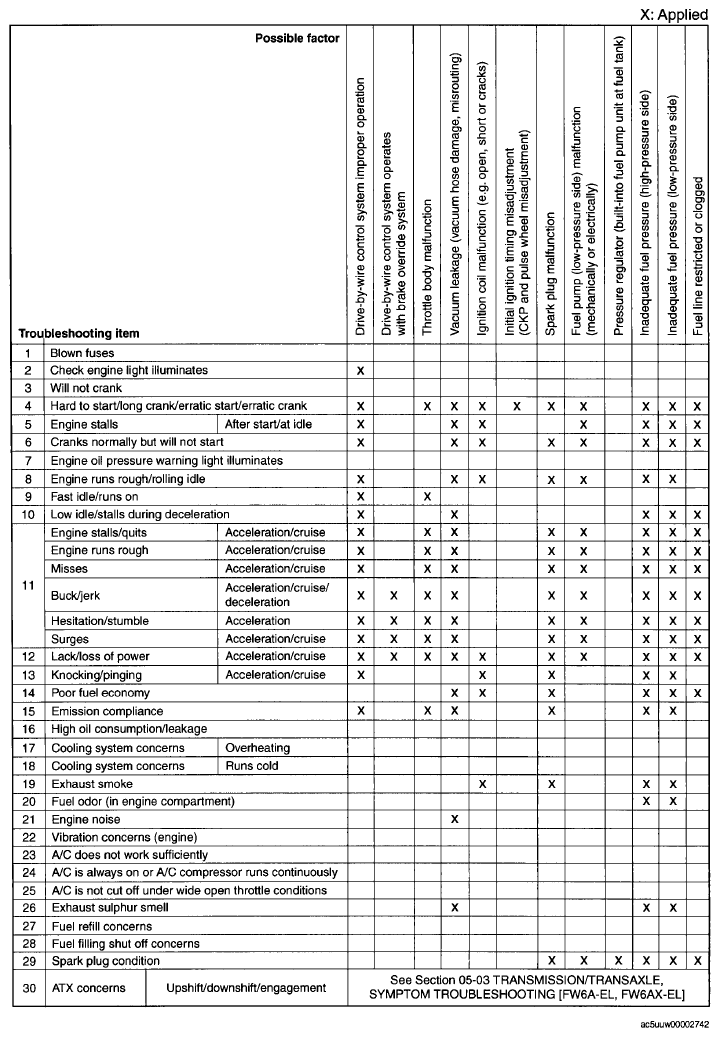

Fig 3: Quick Diagnostic Chart (3 Of 8)

G09074057

X: Applied

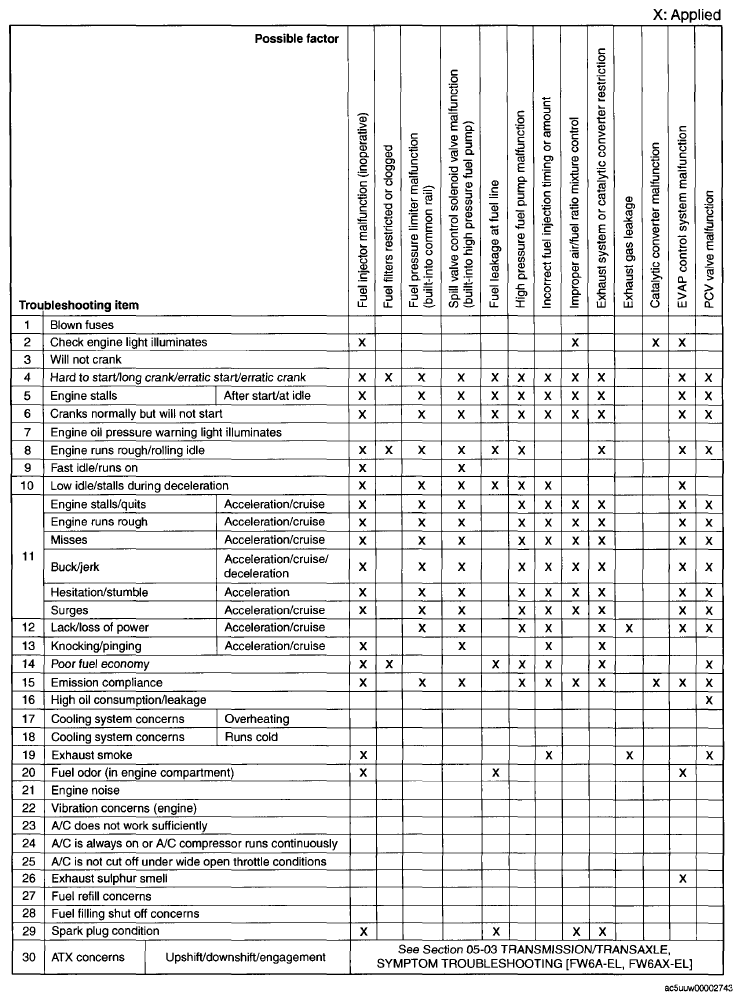

Fig 4: Quick Diagnostic Chart (4 Of 8)

G09074058

X: Applied

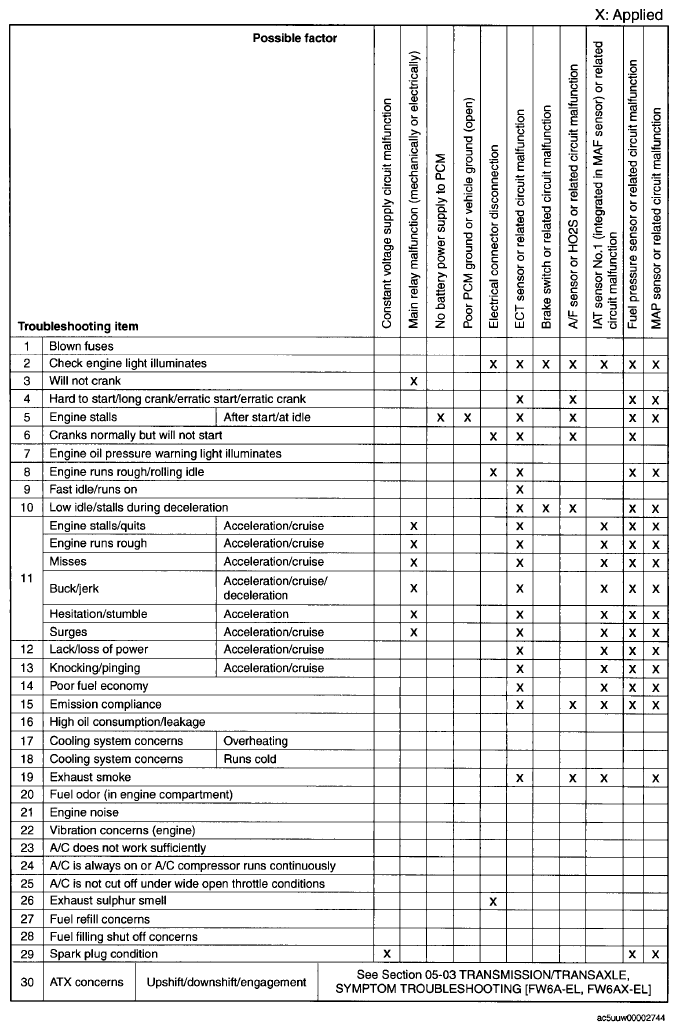

Fig 5: Quick Diagnostic Chart (5 Of 8)

G09074059

X: Applied

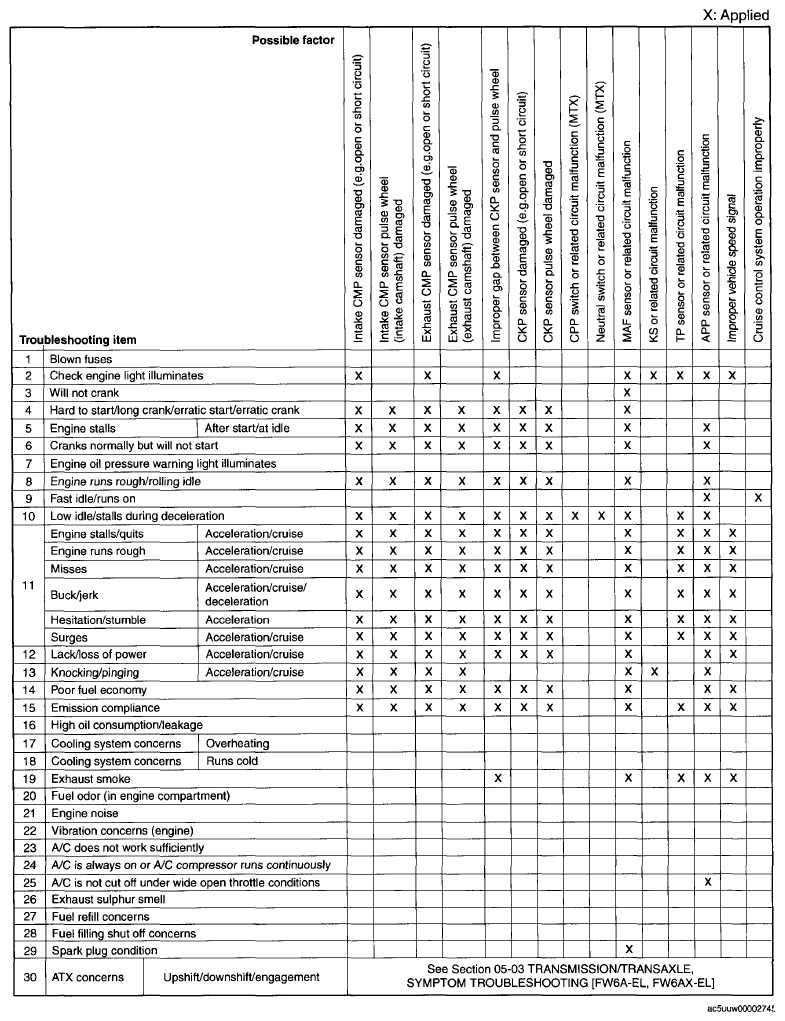

Fig 6: Quick Diagnostic Chart (6 Of 8)

G09074060

X: Applied

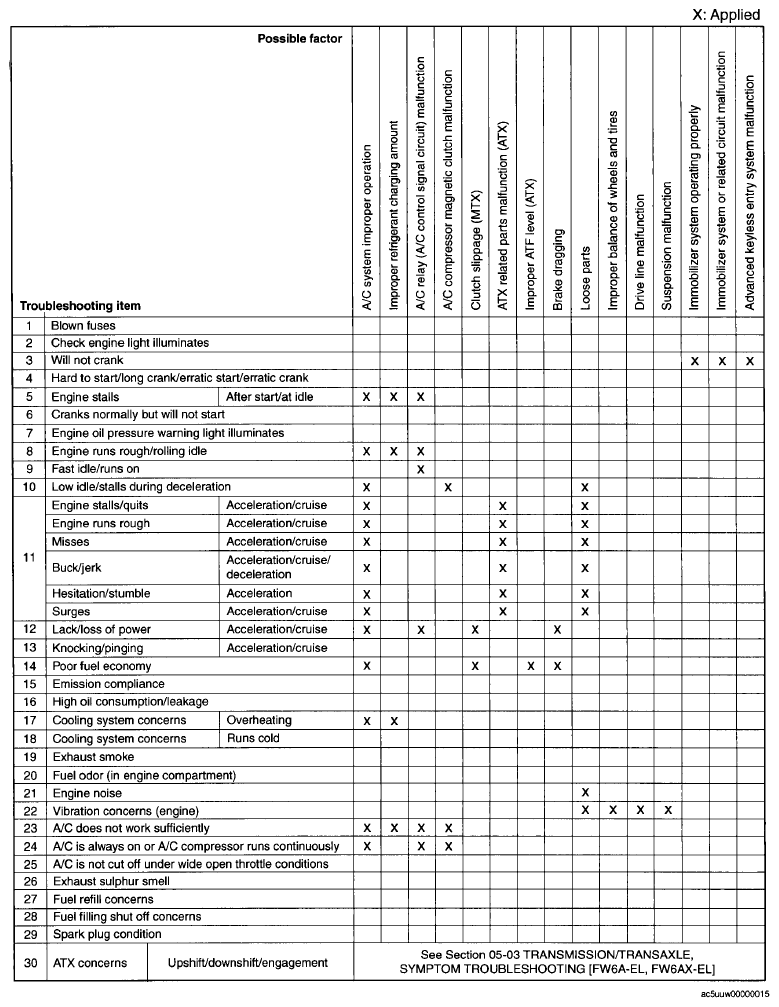

Fig 7: Quick Diagnostic Chart (7 Of 8)

G09074061

X: Applied

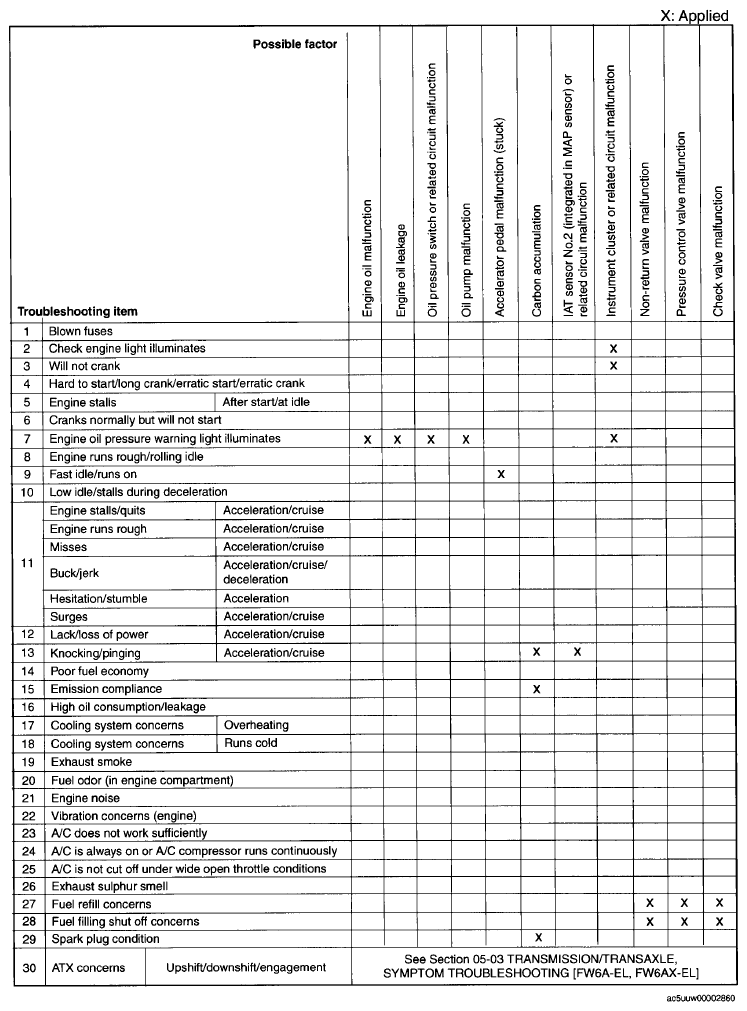

Fig 8: Quick Diagnostic Chart (8 Of 8)

G09074062
