Disconnecting connectors

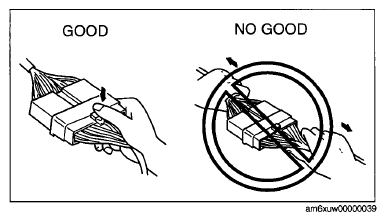

When disconnecting connector, grasp the connectors, not the wires.

Fig 1: Caution For Disconnecting Connector

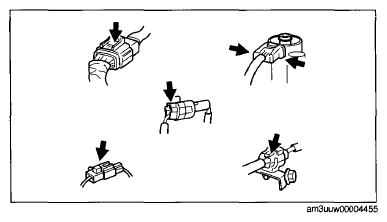

Connectors can be disconnected by pressing or pulling the lock lever as shown.

Fig 2: Disconnecting Connectors
