Manifold Absolute Pressure (Map) Sensor Removal/Installation
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] ).
- Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).

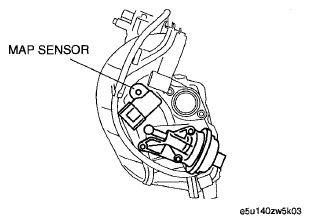

- Remove the MAP sensor.
- Install in the reverse order of removal.
MAP sensor tightening torque
2.7-3.7 N.m {28-37 kgf.cm, 24-32 in.lbf}
