Keyless Antenna Removal/Installation: Rear

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  2. Remove the nuts.
  3. Disconnect the connector, then remove the keyless antenna.

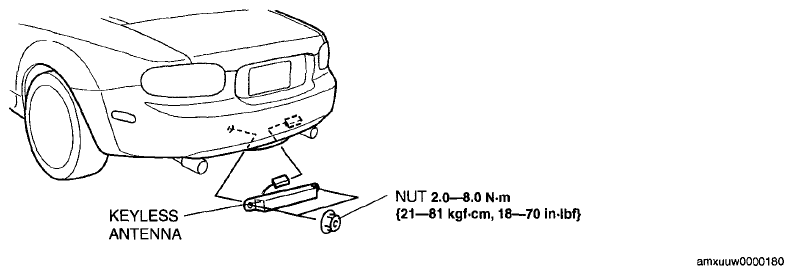

    Fig 1: Keyless Antenna With Torque Specifications
    G06149567Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
