DTC P0072 00: Ambient Temperature Sensor Circuit Low Input: Notes
DTC P0072:00 DETECTION CONDITIONS AND POSSIBLE CAUSES (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
| DTC P0072:00 |
Ambient temperature sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input signal from the ambient temperature sensor. If the voltage from the ambient temperature sensor is below 0.18 V
, the PCM determines that the ambient temperature sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- Ambient temperature sensor connector or terminals malfunction
- Ambient temperature sensor malfunction

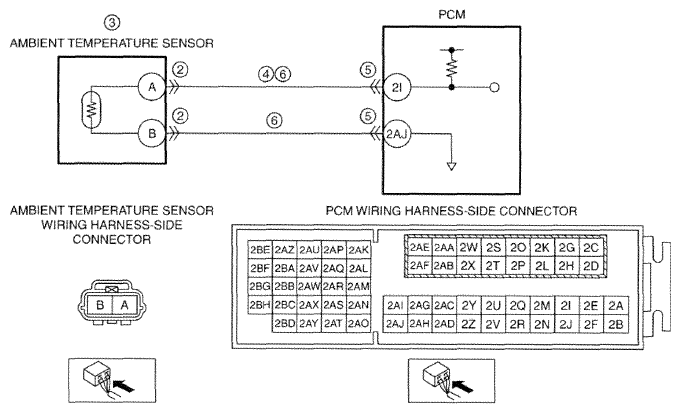

- Short to ground in wiring harness between ambient temperature sensor terminal A and PCM terminal 2I
- PCM connector or terminals malfunction
- Ambient temperature sensor signal circuit and ground circuit are shorted to each other
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
