DTC B1C84 12: Rear Window Defroster Relay Circuit Malfunction: Notes
DTC B1C84 12 DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Rear window defroster relay circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to power supply in the rear window defroster relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Rear window defroster relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

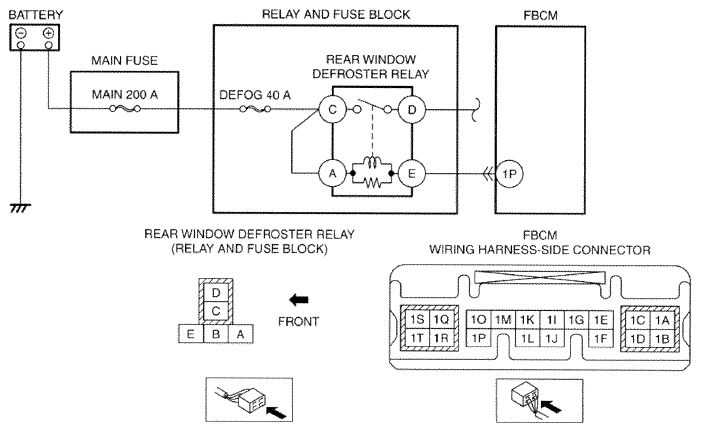

- Short to power supply in wiring harness between rear window defroster relay terminal E and front body control module (FBCM) terminal 1P
- Front body control module (FBCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
