Air Cleaner Case Installation Note

  1. Install the air cleaner case as shown in the figure.

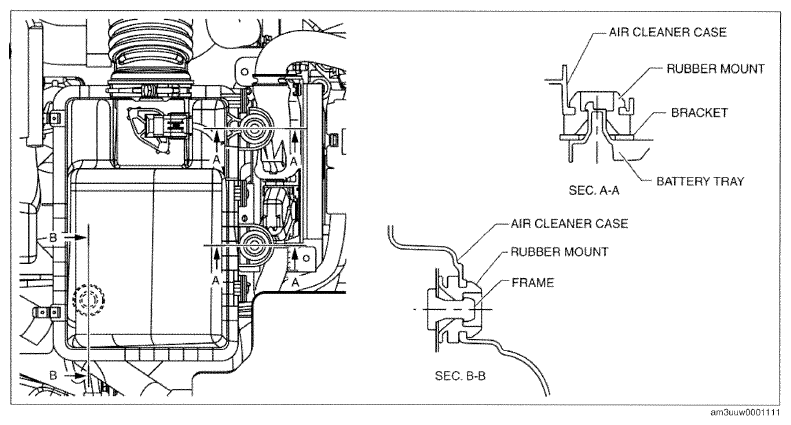

    Fig 1: Identifying Air Cleaner Case Installation Position
    G09782632Courtesy of MAZDA MOTORS CORP.
