DRL System (Except Canada specs.)
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
| Function | Initial setting | Setting contents | Control module |
|---|---|---|---|
| The DRL system function can be set. | On (DRL illumination) | Off (DRL non-illumination)/On (DRL illumination) | Front body control module (FBCM) |

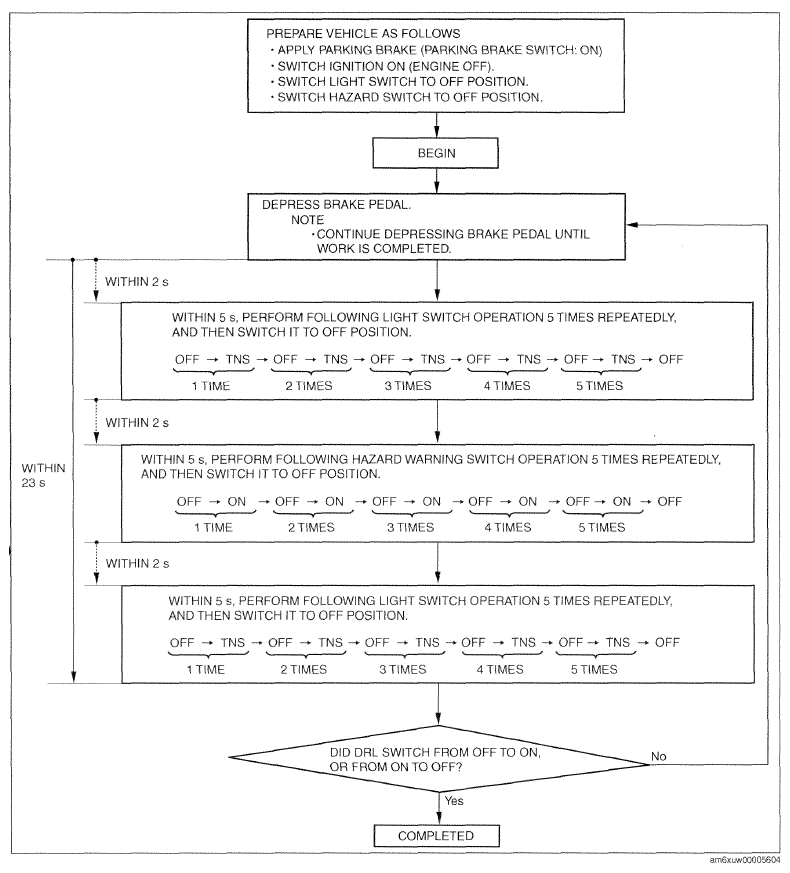

- Perform the following procedure to change the DRL illumination/non-illumination setting.NOTE:
- Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.
