Air Bag System Location Index [Standard Deployment Control System]

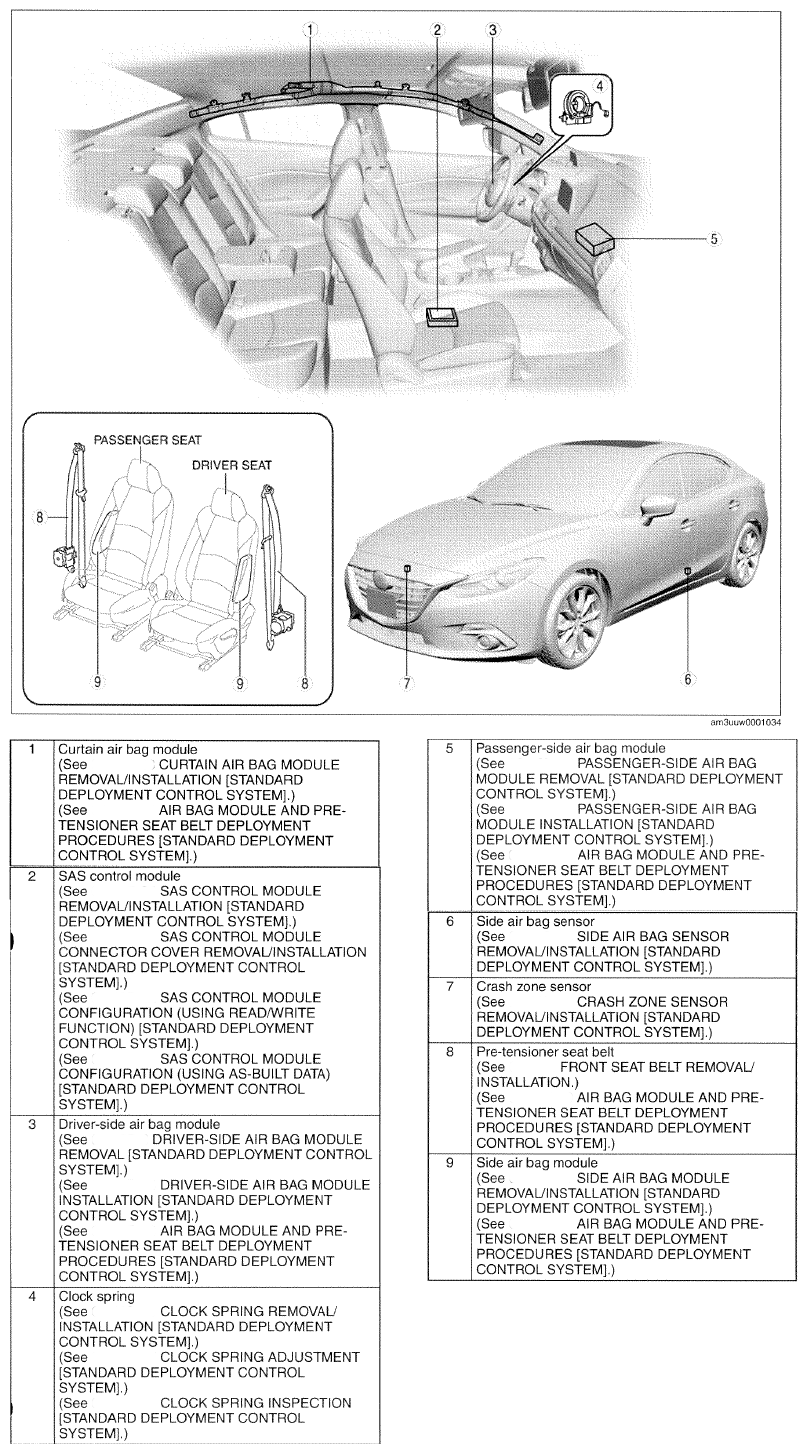

Fig 1: Air Bag System Components Location - Standard Deployment Control System
G09771588Courtesy of MAZDA MOTORS CORP.
