Adjuster Anchor Cover Removal Note

The adjuster anchor cover is installed to the adjuster anchor by engaging the tab.

Press the adjuster anchor cover in the directions of arrows (1) shown in the figure and pull it in the direction of arrow (2).

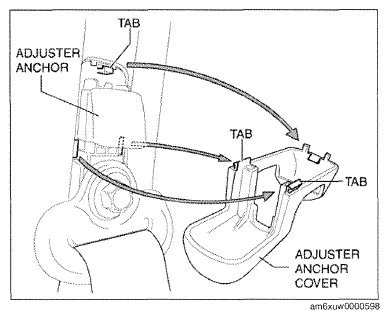

Fig 1: Identifying Adjuster Anchor, Cover And Tab
Courtesy of MAZDA MOTORS CORP.

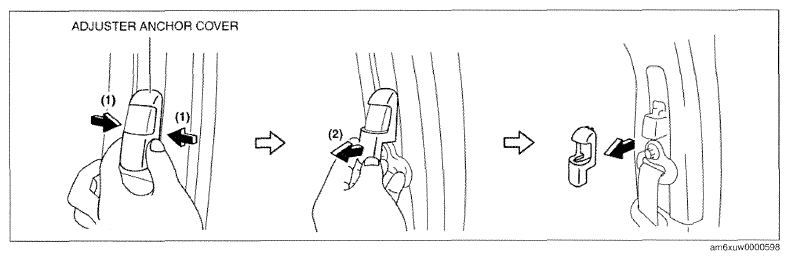

Fig 2: Removing Adjuster Anchor Cover
Courtesy of MAZDA MOTORS CORP.
Remove the adjuster anchor cover.
