RBCM Connector End View

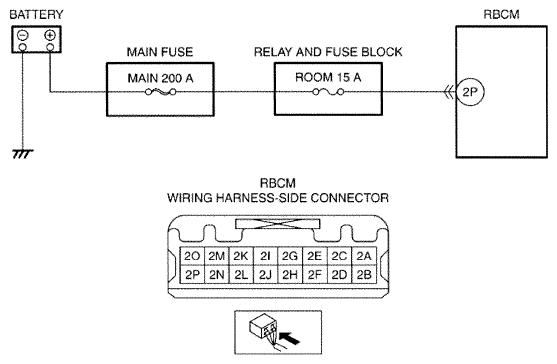

Fig 1: RBCM Connector End View
G09771845Courtesy of MAZDA MOTORS CORP.

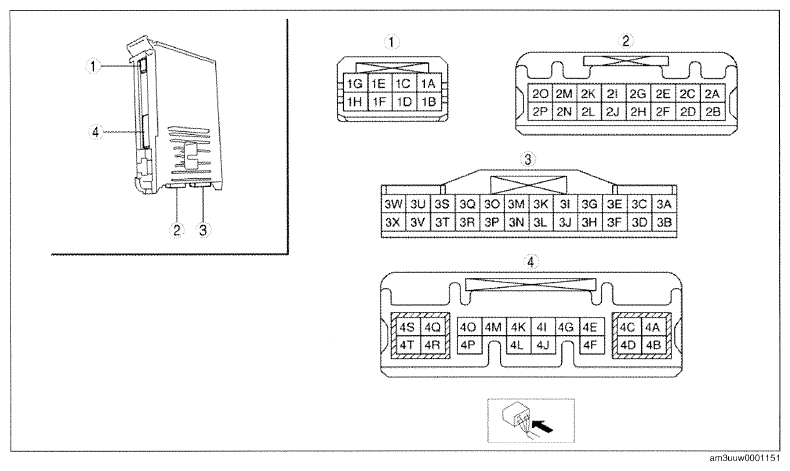

Fig 1: RBCM Connector End View
G09784485Courtesy of MAZDA MOTORS CORP.
