Air Bag System Location Index [Two-Step Deployment Control System]

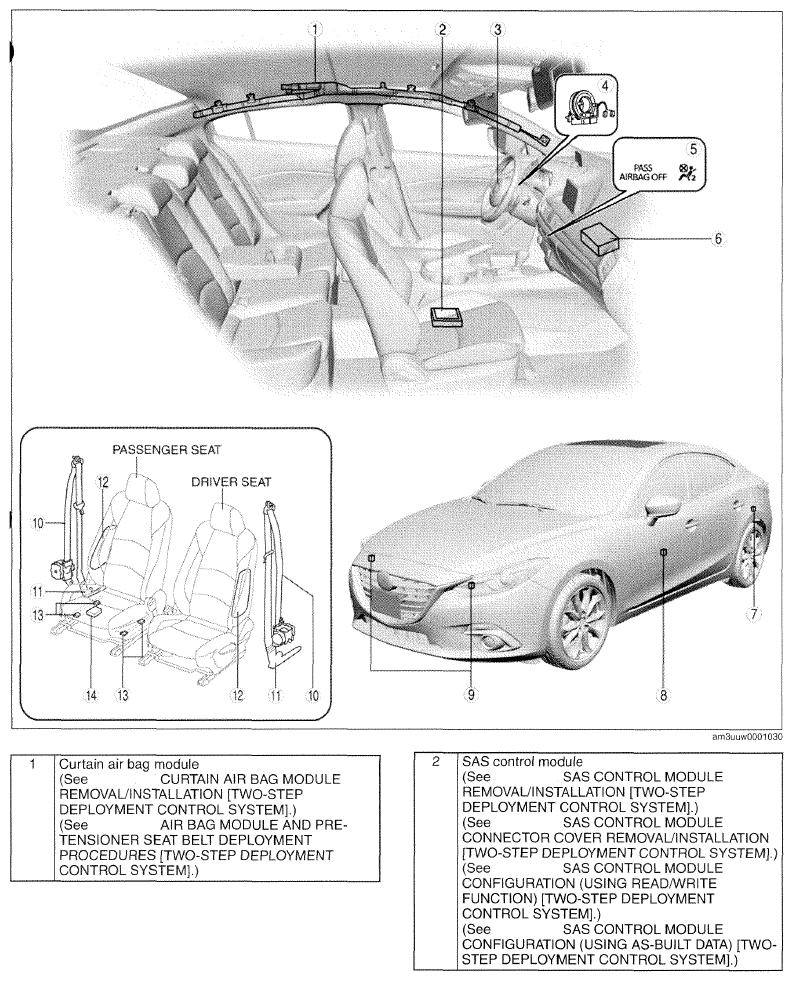

Fig 1: Air Bag System Component Locations (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

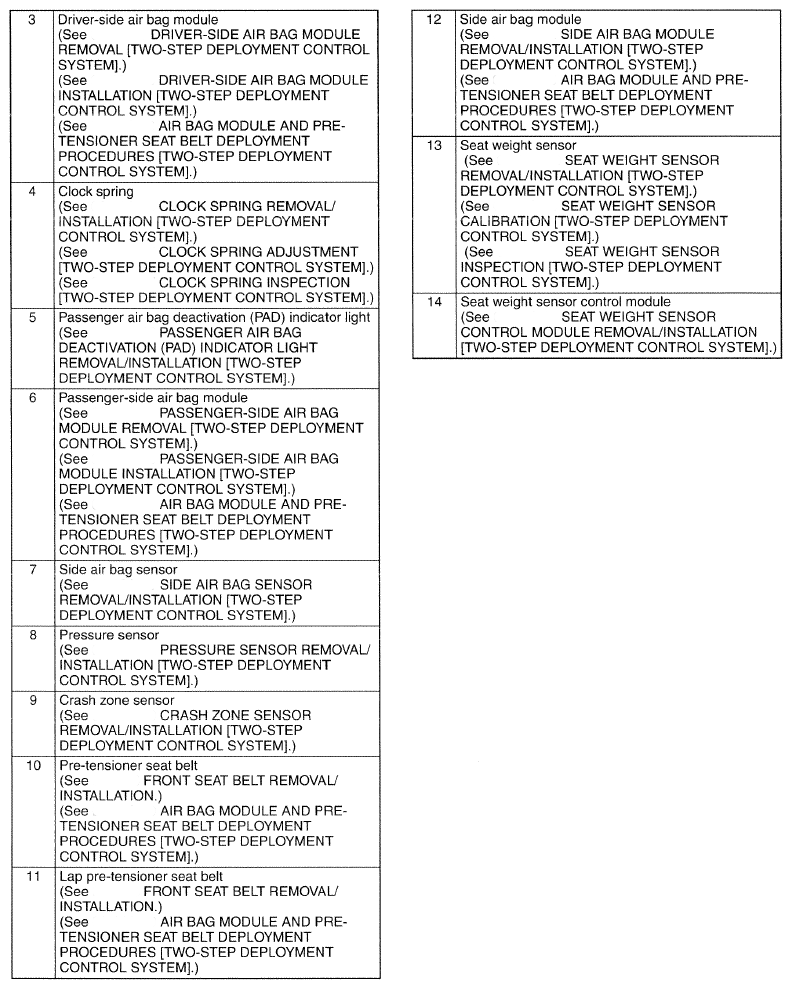

Fig 2: Air Bag System Component Locations (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
