Inspection Using an Oscilloscope (Reference)

Interior light control

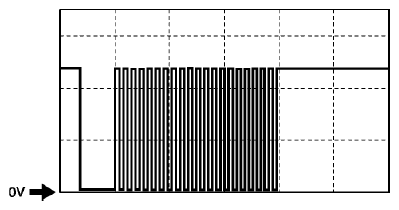

Fig 1: Interior Light Control Graph (Oscilloscope)

Courtesy of MAZDA MOTORS CORP.

• Terminal connected: 5N (+) ↔ Body ground (-)
• Oscilloscope setting: 5 V/DIV (Y), 5 s/DIV (X), DC range
