| DETECTION CONDITION |
- The PCM monitors the input signal from the KS when the engine is running. If the input voltage is above 4.8 V
for 5 s
, the PCM determines that the KS circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Inhibits the fuel cut control during shift change.
- Sets the knocking spark retard correction value of the ignition control based on the engine speed.
|
| POSSIBLE CAUSE |
- KS connector or terminals malfunction
- KS malfunction
- PCM connector or terminals malfunction

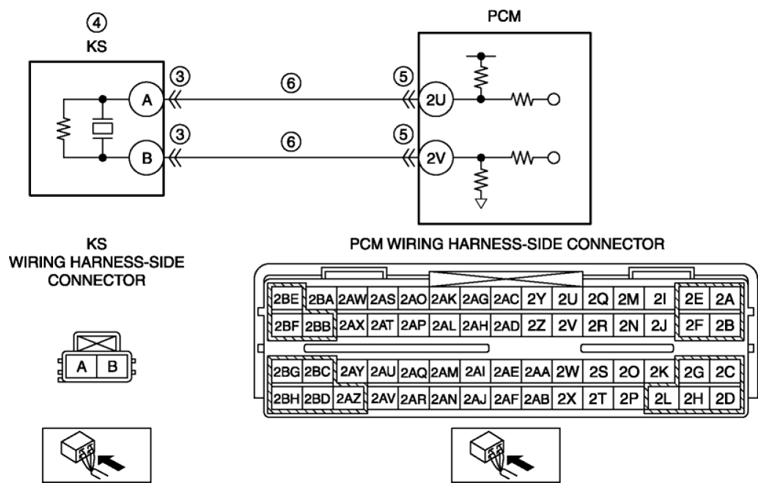

- Short to power supply in wiring harness between the following terminals:
- KS terminal A-PCM terminal 2U
- KS terminal B-PCM terminal 2V
- PCM malfunction
|
