DTC B1087 88: Lin Communication Error: Notes

DTC B1087 88 DETECTION CONDITION AND POSSIBLE CAUSE

Description  LIN communication error
Detection condition
  • LIN bus communication line malfunction detected for 1 s or more
Fail-safe function  Not applicable
Possible cause
  • Malfunction in LIN bus communication line
    • Current sensor terminal B-Front body control module (FBCM) terminal 2E (With i-ELOOP)
  • Front body control module (FBCM) malfunction

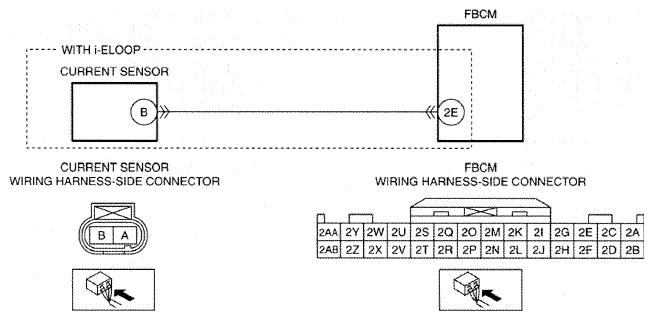

G09771787
