DTC B11DB 86: Error Signal Received From Current Sensor: Notes

DTC B11DB 86 DETECTION CONDITION AND POSSIBLE CAUSE

Description	Error signal received from current sensor
Detection condition	Front body control module (FBCM) receives the error signals from the current sensor for 5 s or more  with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable

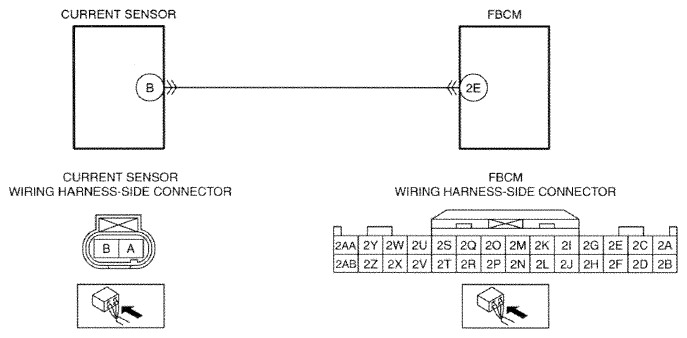

Possible cause	Current sensor connector or terminal malfunction Front body control module (FBCM) connector or terminal malfunction Short to ground in wiring harness between current sensor terminal B and front body control module (FBCM) terminal 2E Short to power supply in wiring harness between current sensor terminal B and front body control module (FBCM) terminal 2E Open circuit in wiring harness between current sensor terminal B and front body control module (FBCM) terminal 2E Current sensor malfunction Front body control module (FBCM) malfunction
