DTC U1007 68: Communication Error With Current Sensor: Notes

DTC U1007 68 DETECTION CONDITION AND POSSIBLE CAUSE

Description	Communication error with current sensor
Detection condition	Front body control module (FBCM) could not receive signals from the current sensor for 5 s or more  with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable

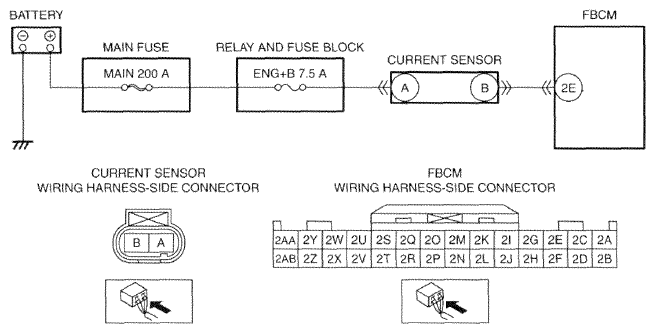

Possible cause	Current sensor connector or terminal malfunction Current sensor power supply circuit malfunction Short to ground in wiring harness between ENG+B 7.5 A fuse and current sensor terminal A ENG+B 7.5 A fuse malfunction MAIN 200 A fuse malfunction Open circuit in wiring harness between battery positive terminal and current sensor terminal A Front body control module (FBCM) connector or terminal malfunction Short to ground in wiring harness between current sensor terminal B and front body control module (FBCM) terminal 2E Open circuit in wiring harness between current sensor terminal B and front body control module (FBCM) terminal 2E Current sensor malfunction Front body control module (FBCM) malfunction
