DTC P0850 00: Neutral Switch Input Circuit Problem: Notes
DTC P0850 00 DETECTION CONDITIONS AND POSSIBLE CAUSES (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
| DTC P0850:00 |
Neutral switch input circuit problem |
| DETECTION CONDITION |
- The PCM monitors changes in input voltage from the neutral switch. If the PCM does not detect a voltage change while driving the vehicle at a vehicle speed above 30 km/h {19 mph}
and the clutch pedal is pressed and released 10 times
repeatedly, the PCM determines that the neutral switch circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
- PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |

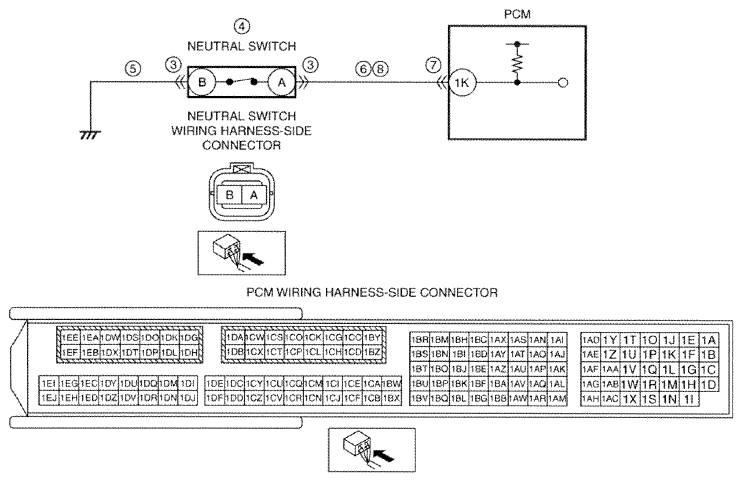

- Neutral switch connector or terminals malfunction
- Neutral switch malfunction
- Open circuit in wiring harness between neutral switch terminal B and body ground
- Short to ground in wiring harness between neutral switch terminal A and PCM terminal 1K
- PCM connector or terminals malfunction
- Open circuit in wiring harness between neutral switch terminal A and PCM terminal 1K
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
