DTC P2302 00: Ion Sensor No. 1 Circuit Problem: Notes

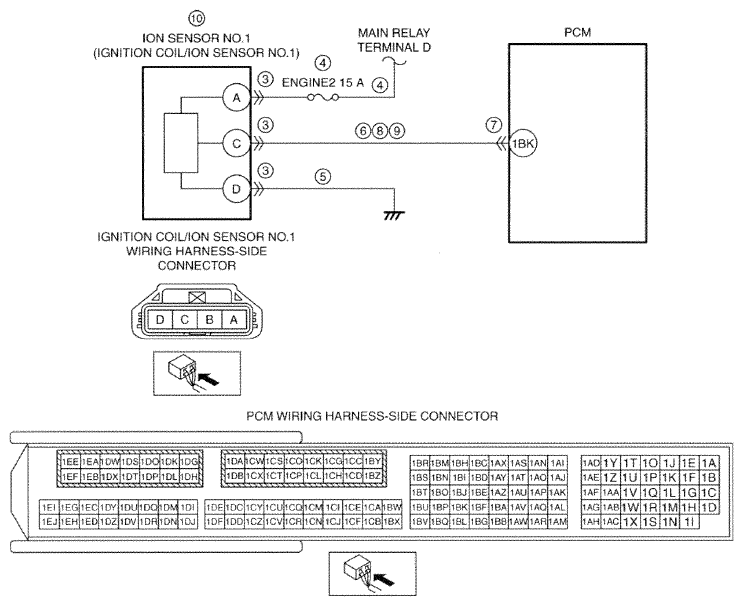

DTC P2302 00 DETECTION CONDITIONS AND POSSIBLE CAUSES (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
| DTC P2302:00 |
Ion sensor No. 1 circuit problem |
| DETECTION CONDITION |
- After the engine is started, when the engine speed is 2, 000 rpm or less, the signal input to the PCM from ion sensor No. 1 is in error.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2) is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- Cylinder No. 1 misfire
- Ignition coil/ion sensor No. 1 connector or terminals malfunction
- Short to ground or open circuit in ion sensor No. 1 power supply circuit
- Short to ground in wiring harness between ENGINE2 15 A fuse and ignition coil/ion sensor No. 1 terminal A
- ENGINE2 15 A fuse malfunction
- Open circuit in wiring harness between main relay terminal D and ignition coil/ion sensor No. 1 terminal A
- Open circuit in wiring harness between ignition coil/ion sensor No. 1 terminal D and body ground
- Short to ground in wiring harness between ignition coil/ion sensor No. 1 terminal C and PCM terminal 1BK
- PCM connector or terminals malfunction
- Short to power supply in wiring harness between ignition coil/ion sensor No. 1 terminal C and PCM terminal 1BK
- Open circuit in wiring harness between ignition coil/ion sensor No. 1 terminal C and PCM terminal 1BK
- Ion sensor No. 1 malfunction
- PCM malfunction
|
