Climate Control Unit Disassembly/Assembly [Manual Air Conditioner]: Notes

  1. Disassemble in the order indicated in the figure.

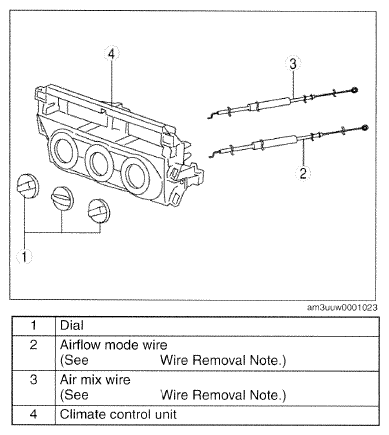

    Fig 1: Identifying Climate Control Unit Related Components
    G09771407Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
