Start Stop Unit And IG1 Relay Connector End View

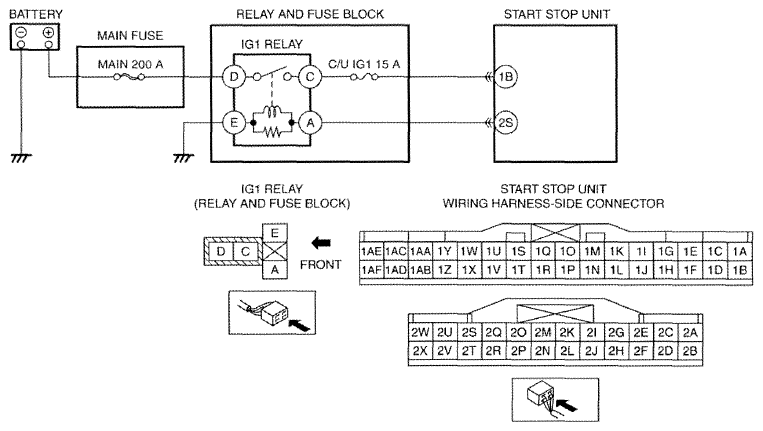

Fig 1: Start Stop Unit And IG1 Relay Connector End View
G09771859Courtesy of MAZDA MOTORS CORP.
