Door Lock System (With Advanced Keyless Entry System)

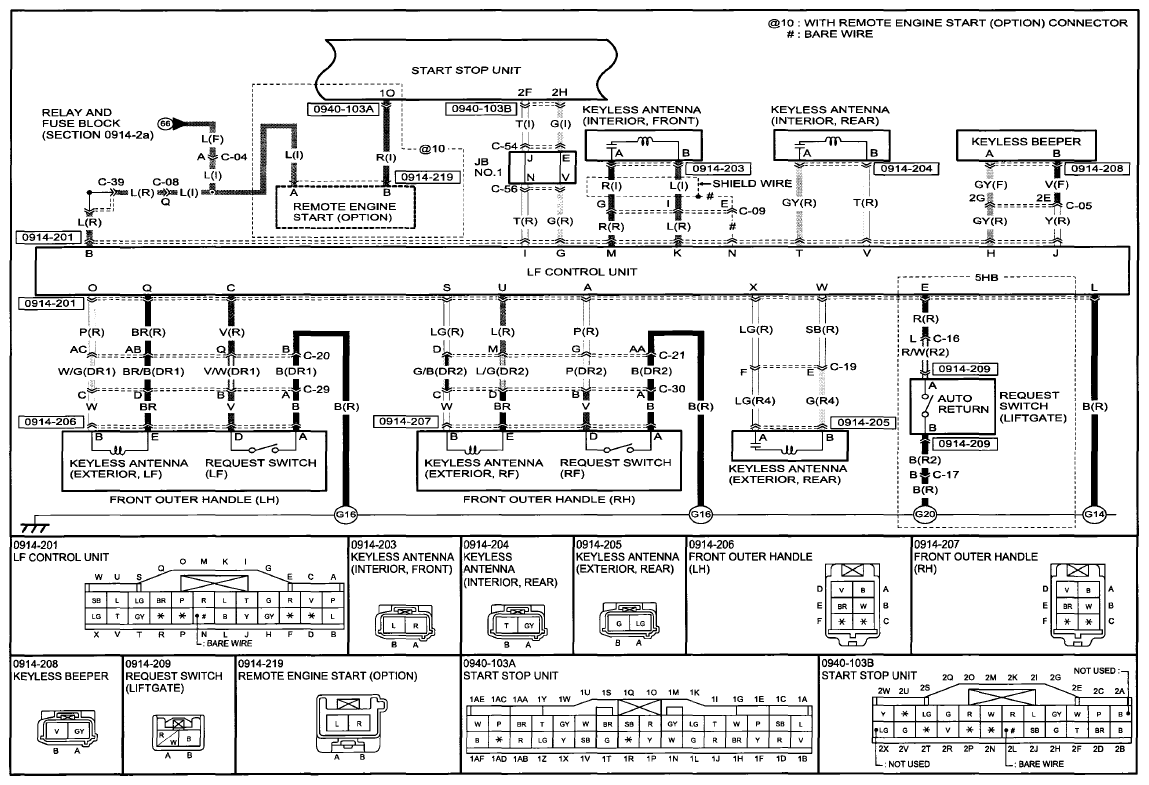

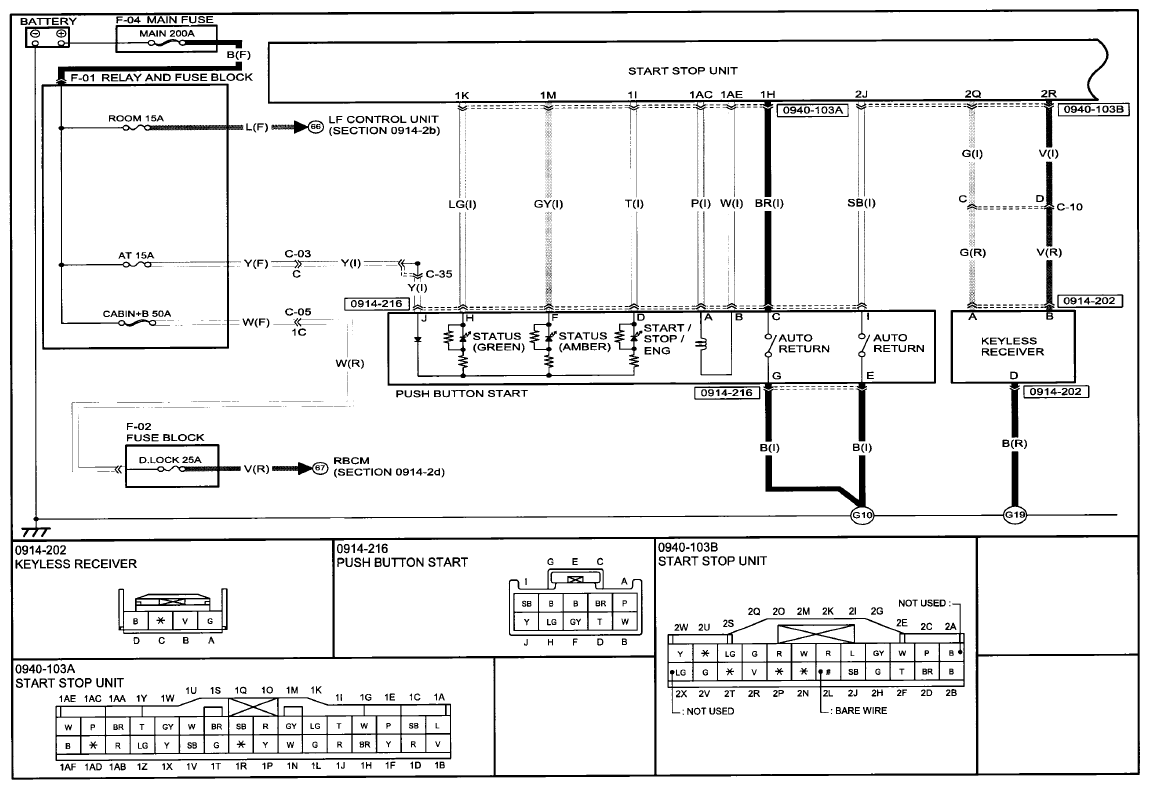

Fig 1: Door Lock System Communication Diagram - With Advanced Keyless Entry System (0914-1A)

Courtesy of MAZDA MOTORS CORP.

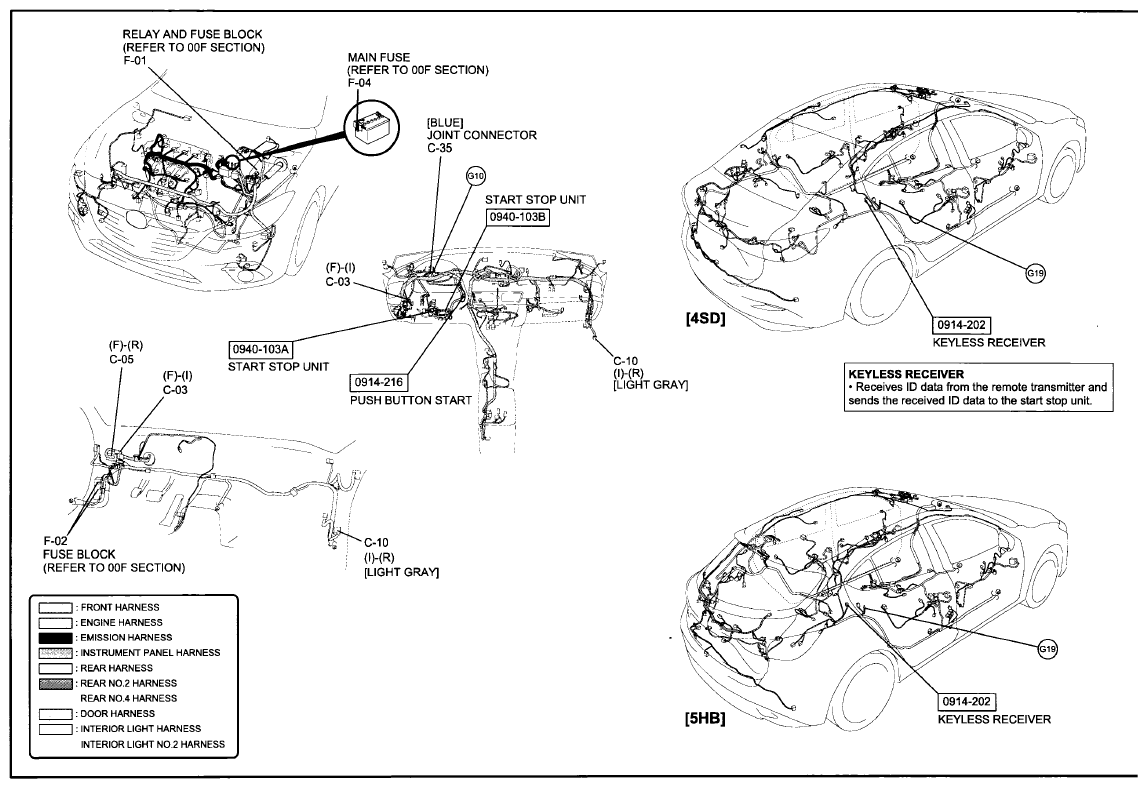

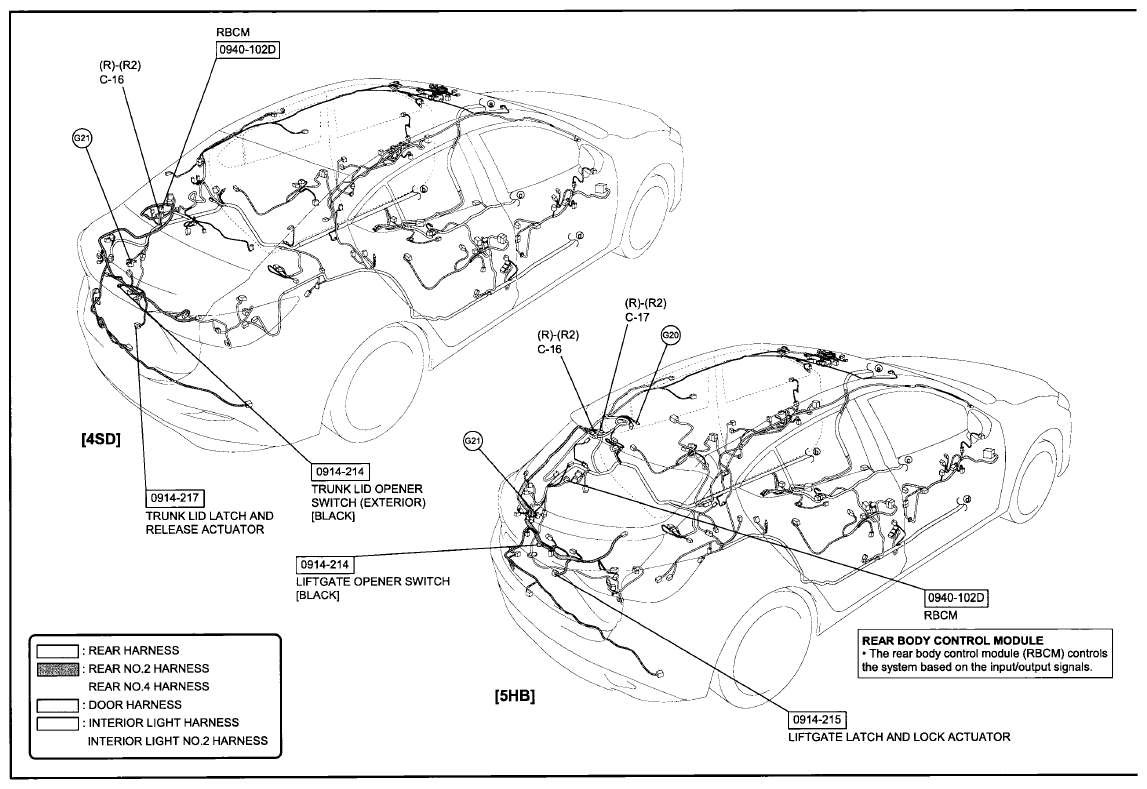

Fig 2: Door Lock System Wiring Harness Connectors - With Advanced Keyless Entry System (0914-1A)

Courtesy of MAZDA MOTORS CORP.

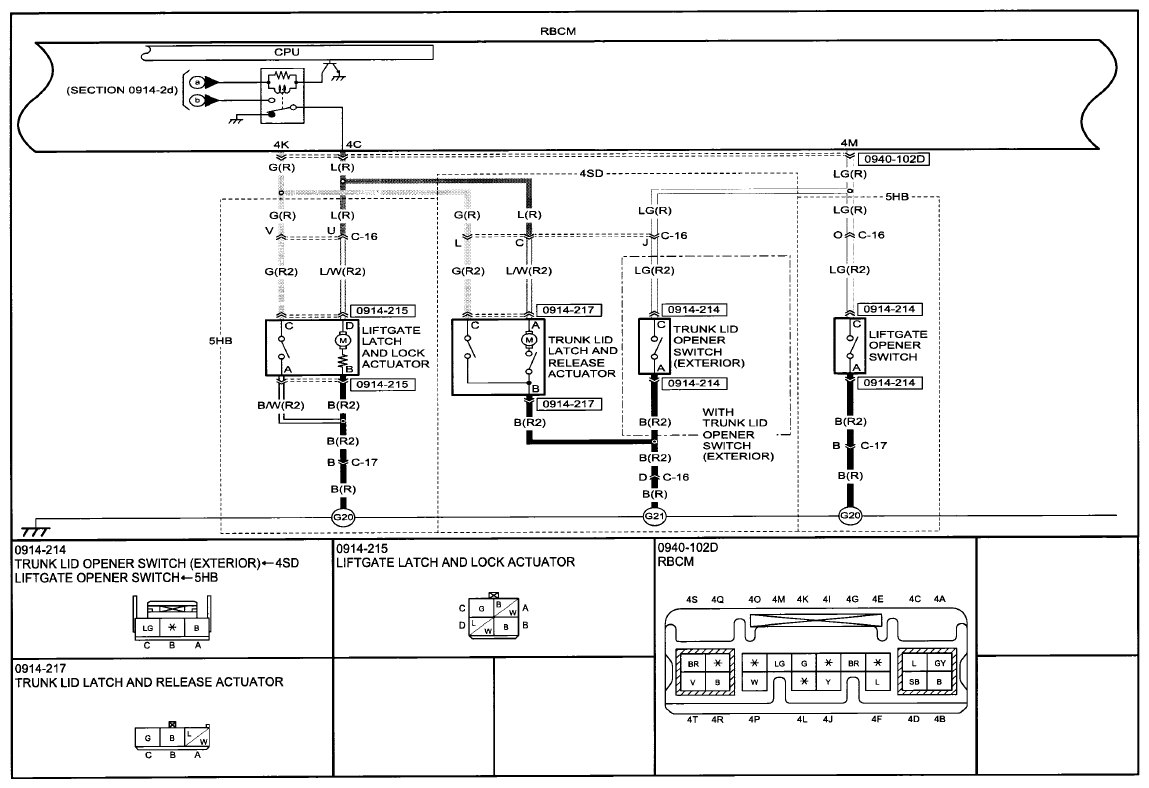

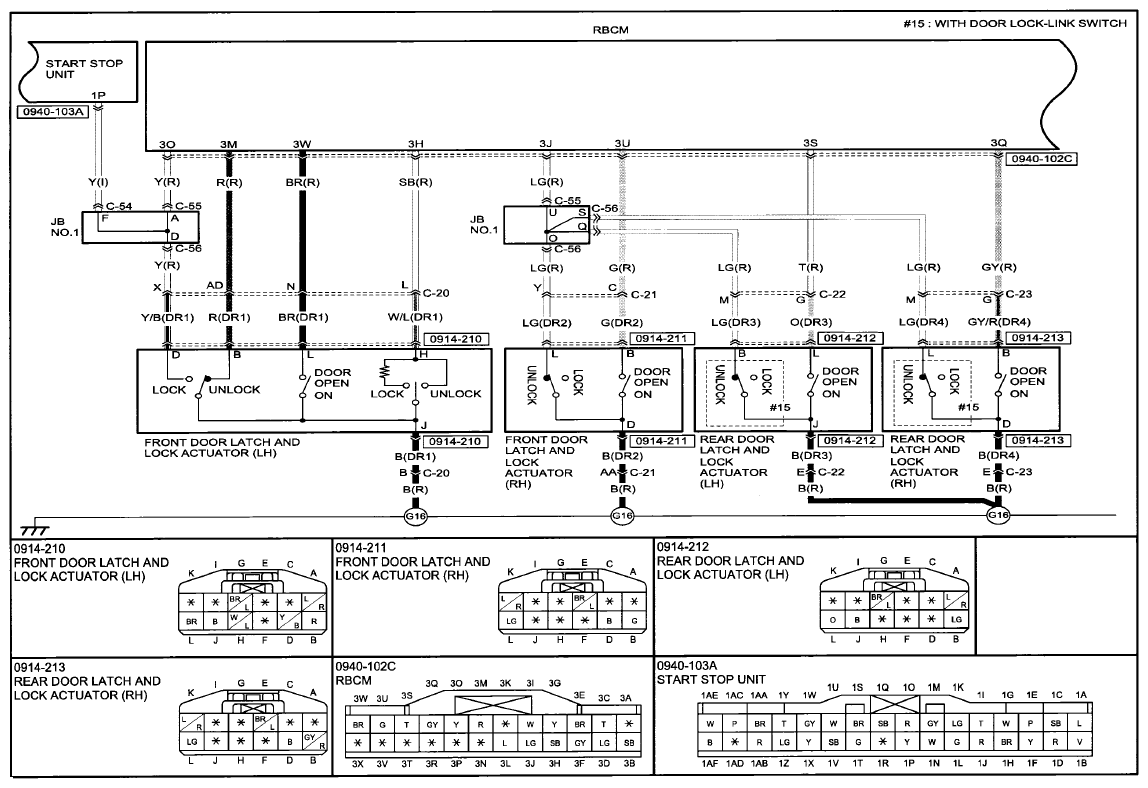

Fig 3: Door Lock System Communication Diagram - With Advanced Keyless Entry System (0914-2B)

Courtesy of MAZDA MOTORS CORP.

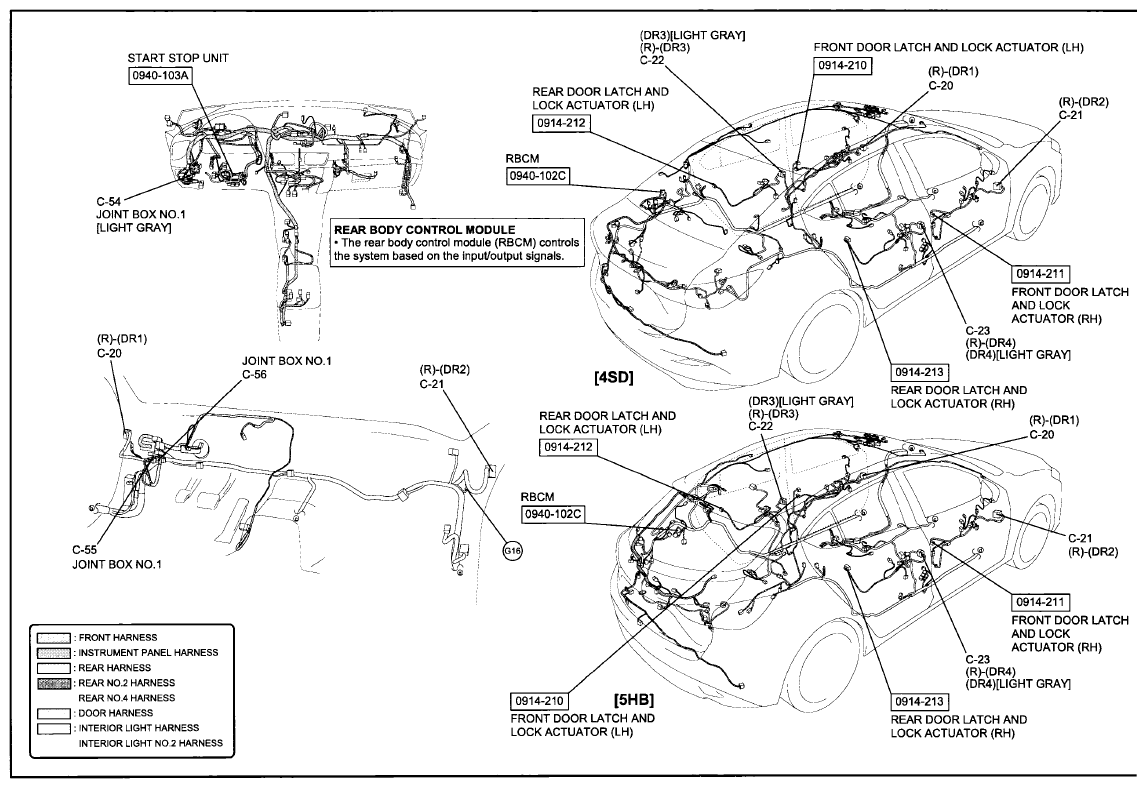

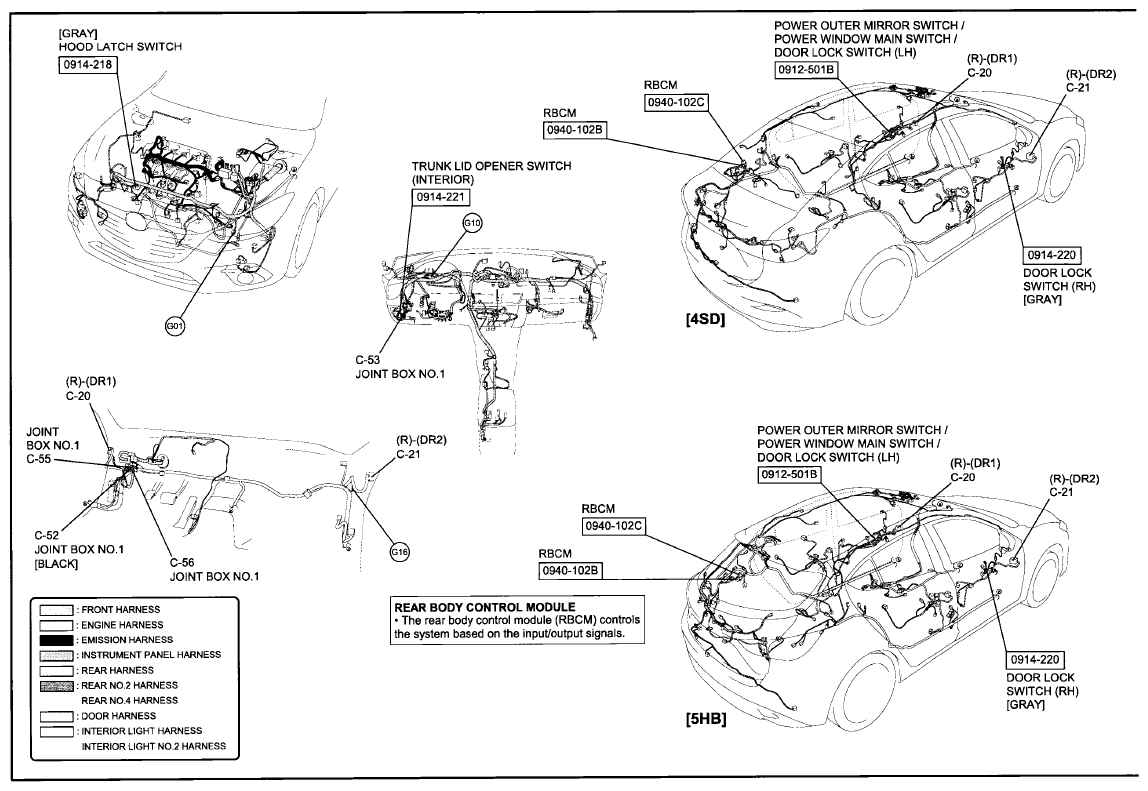

Fig 4: Door Lock System Wiring Harness Connectors - With Advanced Keyless Entry System (0914-2B)

Courtesy of MAZDA MOTORS CORP.

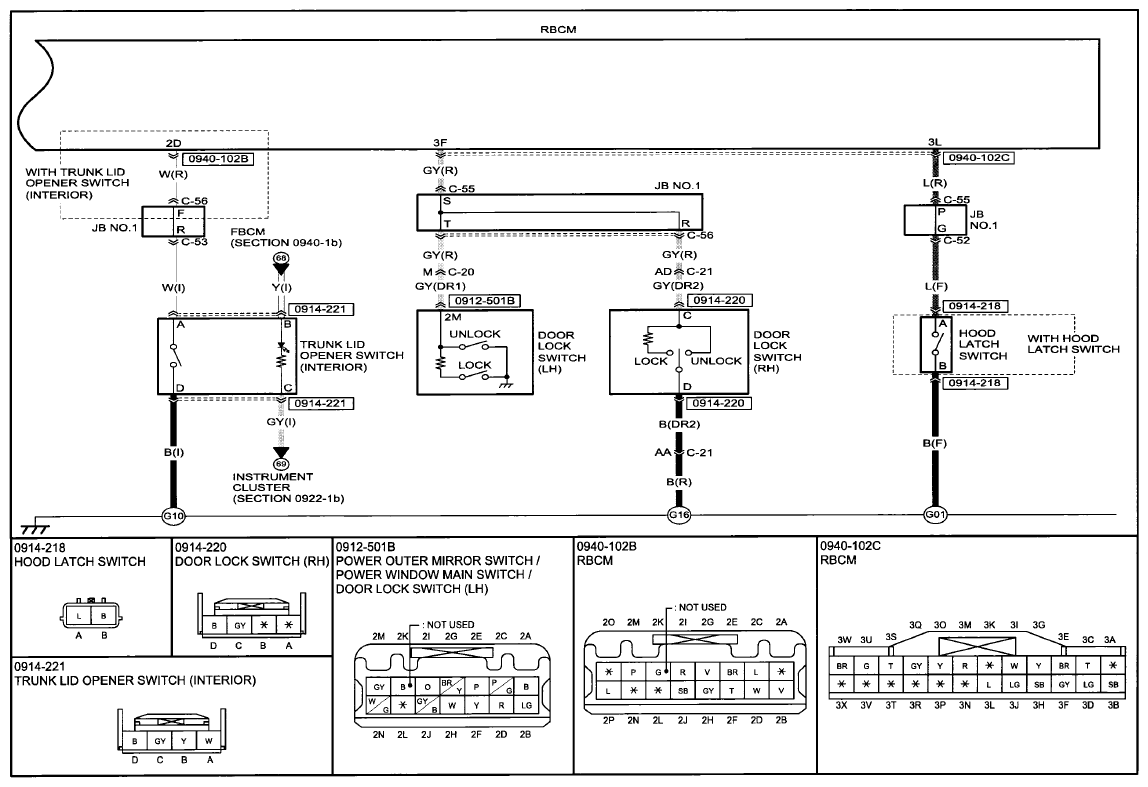

Fig 5: Door Lock System Communication Diagram - With Advanced Keyless Entry System (0914-2C)

Courtesy of MAZDA MOTORS CORP.

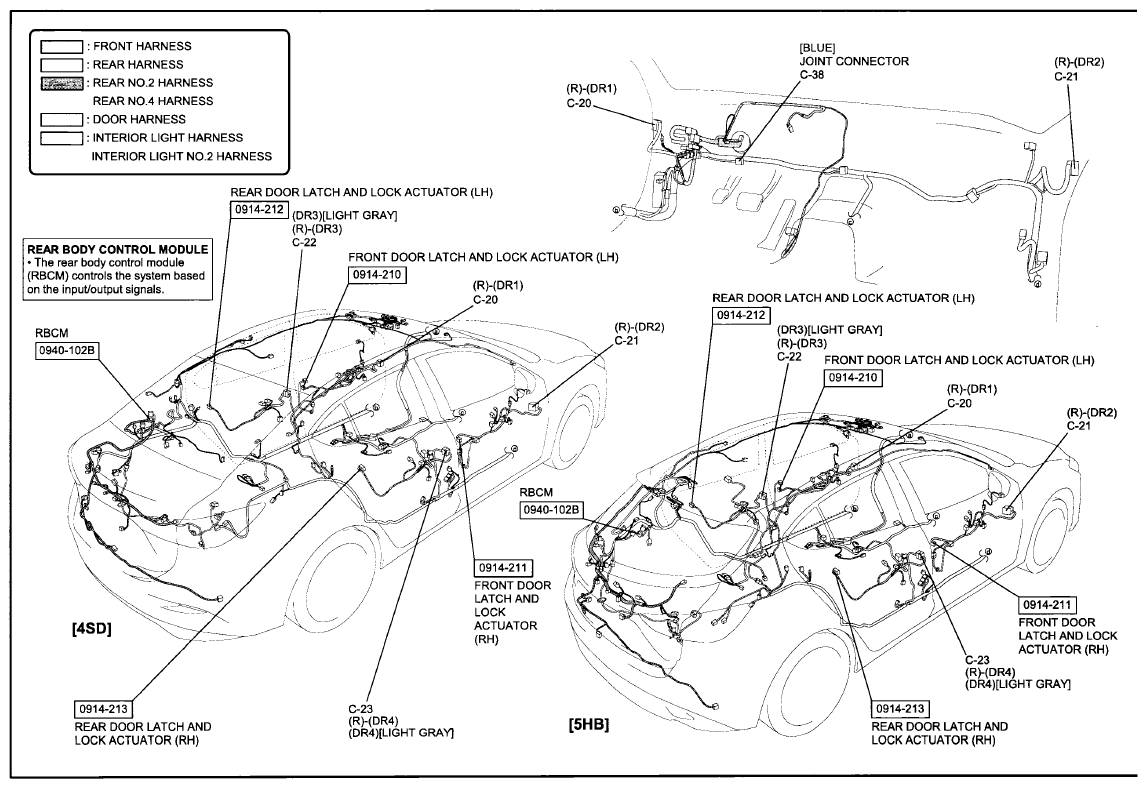

Fig 6: Door Lock System Wiring Harness Connectors - With Advanced Keyless Entry System (0914-2C)

Courtesy of MAZDA MOTORS CORP.

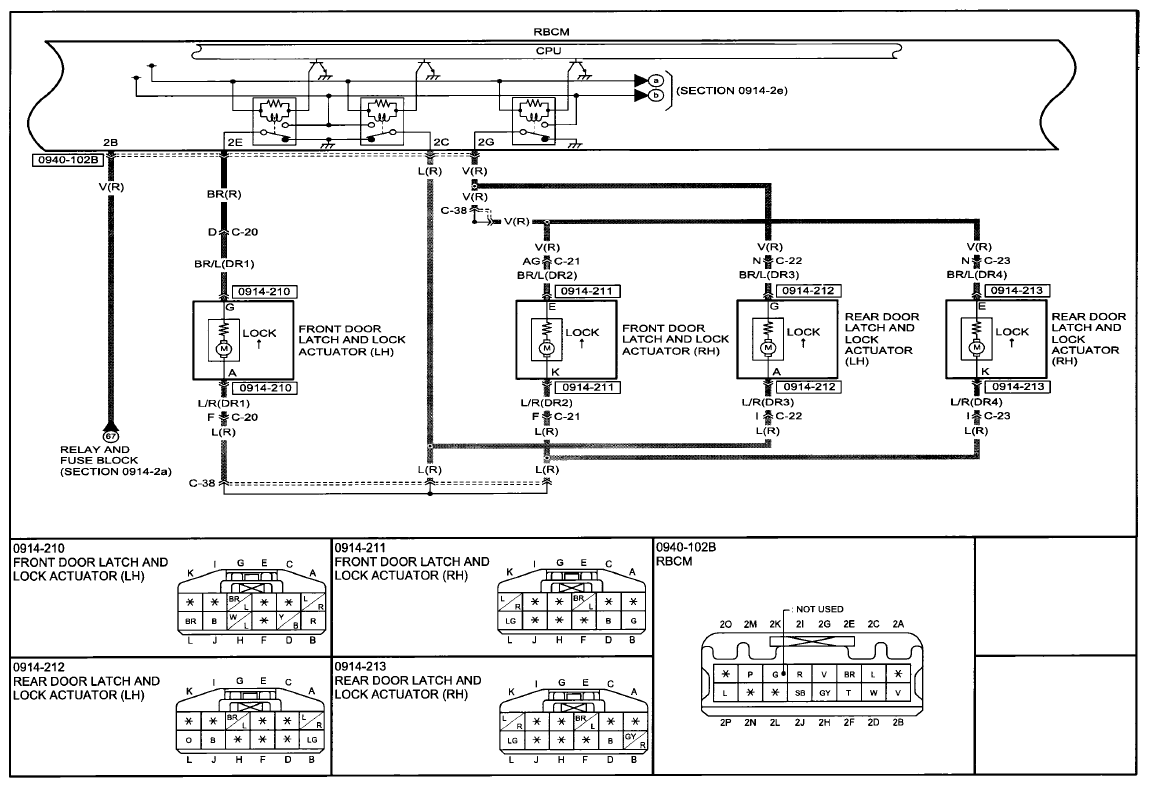

Fig 7: Door Lock System Communication Diagram - With Advanced Keyless Entry System (0914-2D)

Courtesy of MAZDA MOTORS CORP.

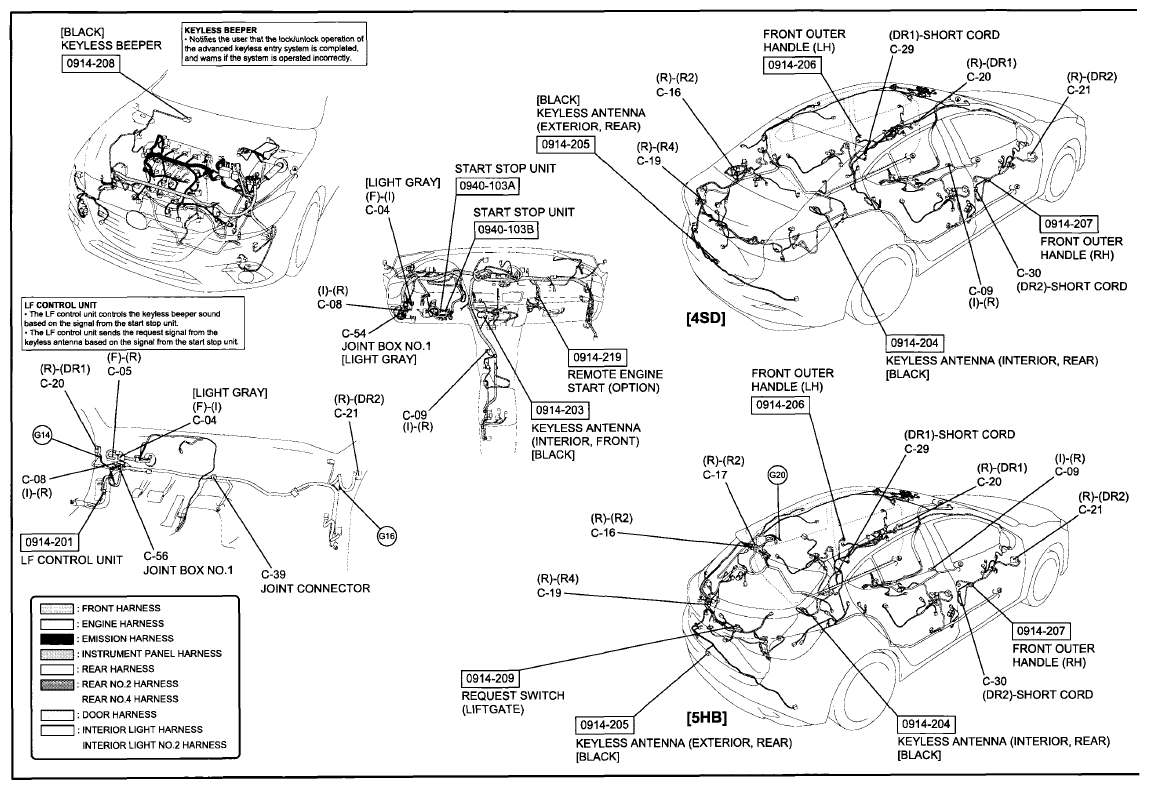

Fig 8: Door Lock System Wiring Harness Connectors - With Advanced Keyless Entry System (0914-2D)

Courtesy of MAZDA MOTORS CORP.

Fig 9: Door Lock System Communication Diagram - With Advanced Keyless Entry System (0914-2E)

Courtesy of MAZDA MOTORS CORP.

Fig 10: Door Lock System Wiring Harness Connectors - With Advanced Keyless Entry System (0914-2E)

Courtesy of MAZDA MOTORS CORP.

Fig 11: Door Lock System Communication Diagram - With Advanced Keyless Entry System (0914-2F)

Courtesy of MAZDA MOTORS CORP.

Fig 12: Door Lock System Wiring Harness Connectors - With Advanced Keyless Entry System (0914-2F)

Courtesy of MAZDA MOTORS CORP.
