Air Bag System Component Disassembly
Disassembling the air bag system components could cause it to not operate (deploy) normally. Never disassemble any air bag system components.

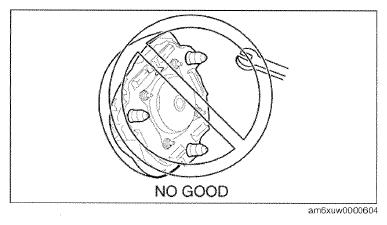

Fig 1: Caution For Air Bag Module Handling
Courtesy of MAZDA MOTORS CORP.
