Clip Removal Note

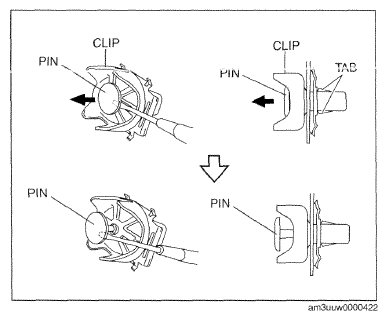

  1. Pull out the pin with flathead screwdriver as shown in the figure.
    Fig 1: Pull Out Pin Using Flathead Screwdriver
    G09760190Courtesy of MAZDA MOTORS CORP.
  2. Insert a flathead screwdriver into shown in the figure.
    Fig 2: Inserting Flathead Screwdriver Into Air Bag Module
    G09076064Courtesy of MAZDA MOTORS CORP.

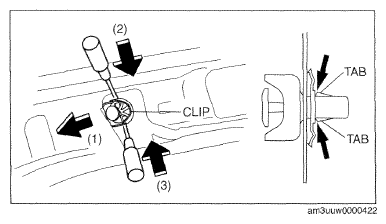

  3. While pulling the curtain air bag in the direction of the arrow shown in the figure (1), detach tabs by prying with a flathead screwdriver in the direction of the arrow (2) (3).
  4. Remove the clip from the body.
    Fig 3: Removing Clip From Body
    G09760192Courtesy of MAZDA MOTORS CORP.
