Side Air Bag Module

  1. Disconnect the front seat connector.
  2. Connect the SST (Adapter harness)  to the front seat connector as shown in the figure.

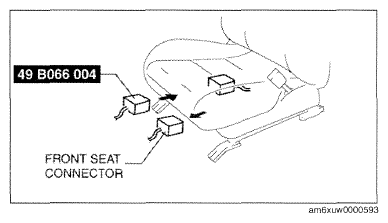

    Fig 1: Connecting SST (Adapter Harness) To Front Seat Connector
    G09771534
  3. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .
  4. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  5. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  6. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.

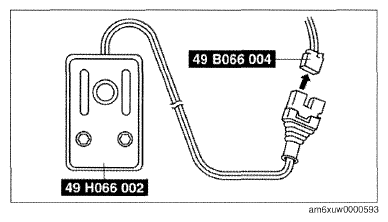

    Fig 2: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G09771535
  7. Press the activation switch on the SST (Deployment tool)  to operate (deploy) the side air bag module.
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
    Fig 3: Pressing Activation Switch On SST (Deployment Tool)
    G09771529
  8. Disconnect the SST (Deployment tool)  from the SST (Adapter harness)  .
