Clock Spring Adjustment [Two-Step Deployment Control System]

Set the front wheels straight ahead.
CAUTION:
- The clock spring will break if over-wound. Do not forcibly turn the clock spring.
Turn the clock spring clockwise until it stops.

Fig 1: Turning Clock Spring Clockwise
Turn the clock spring counterclockwise approx. 2 turns .

Fig 2: Turning Clock Spring Counterclockwise
Align the mark on the clock spring with the mark on the outer housing.

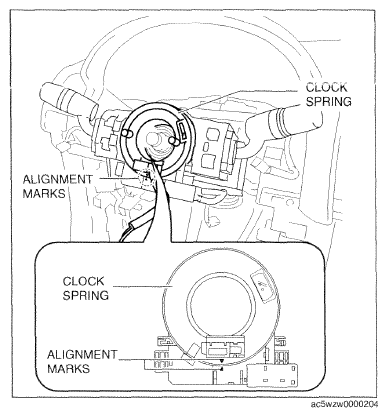

Fig 3: Identifying Clock Spring Alignment Mark
NOTE:
- After adjusting the alignment marks, the guides can be verified in the viewing slots shown in the figure.

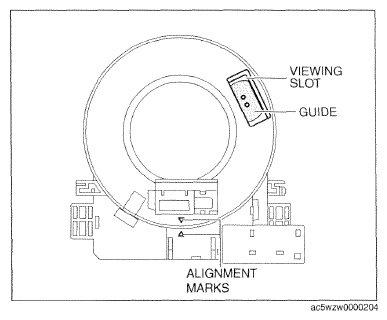

Fig 4: Identifying Guide Viewing Slots And Alignment Marks
