Clock Spring Inspection [Two-Step Deployment Control System]

1. Disconnect the negative battery cable and wait for 1 min or more  . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
5. Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
6. Verify that the continuity is as indicated in the table.
   • If not as indicated in the table, replace the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
   NOTE:

   • When the vehicle-side connector for the clock spring is disconnected, terminals 2A, 2B, 2C and 2D are shorted to prevent unexpected operation (deployment) of the air bag module.

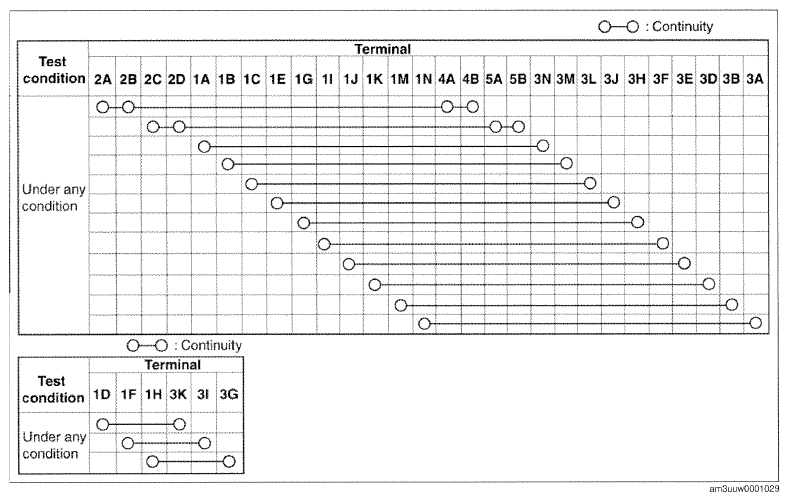

   Fig 1: Air Bag Module Terminals Continuity Reference Chart

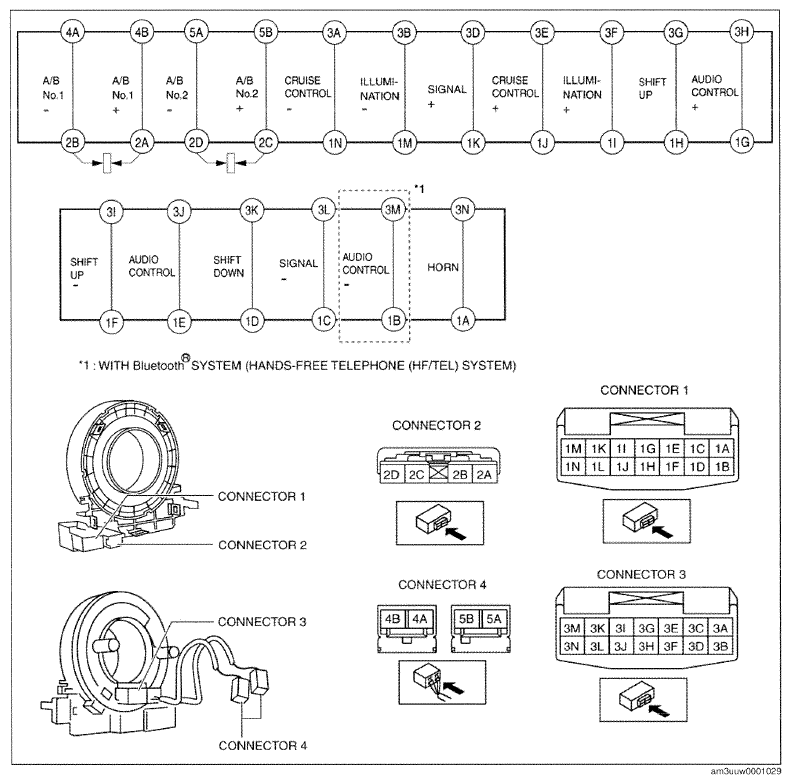

Fig 2: Identifying Vehicle Side Connectors
