Passenger-Side Air Bag Module Installation [Two-Step Deployment Control System]

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
Due to the adoption of 2-step deployment control in the passenger-side air bag module, depending on the impact force, it is possible that inflator No.2 might not deploy. In such cases, before disposing of the air bag module, make sure to follow the inflator deployment procedures and verify complete deployment of inflators No.1 and 2.

Install guide A to the dashboard (1).

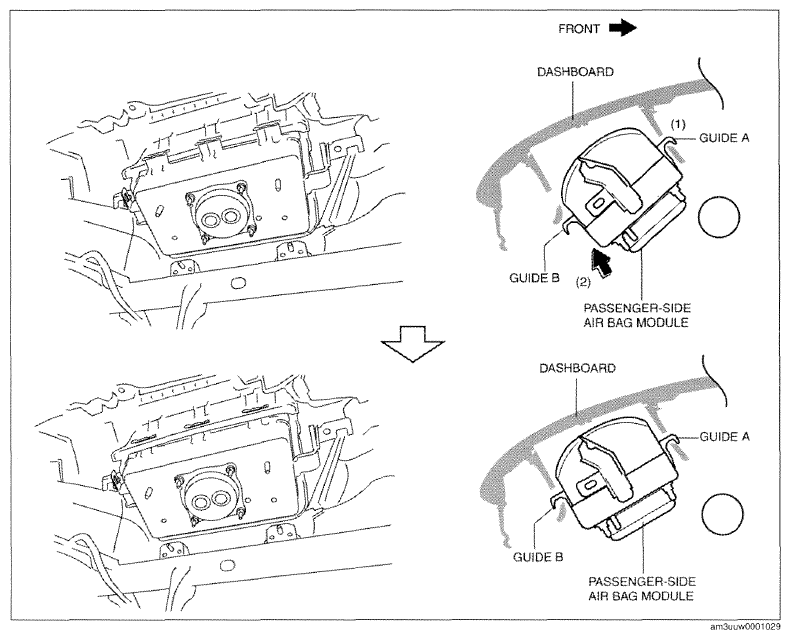

Fig 1: Installing Guide A To Dashboard
Press the passenger-side air bag module in the direction of the arrow shown in the figure and attach guides B (2).
Install the screws.

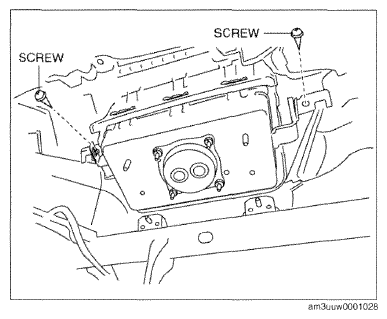

Fig 2: Installing Screws Of Passenger-Side Air Bag Module
Install the brackets.
Install the nuts.

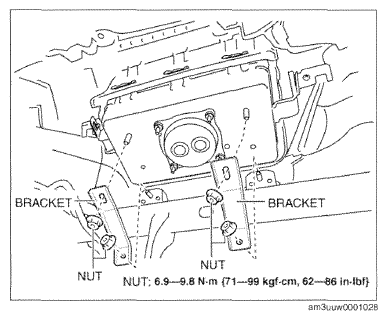

Fig 3: Passenger-Side Air Bag Module Brackets And Nuts With Torque Specifications
Install the fastener.

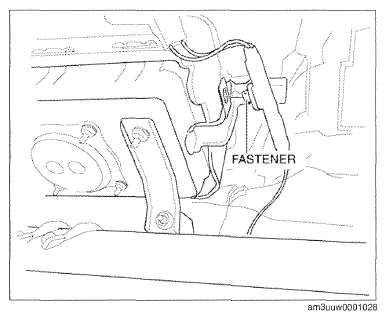

Fig 4: Identifying Fastener
Connect the passenger-side air bag module connector.
Install the cap with the arrow pointing toward the front.

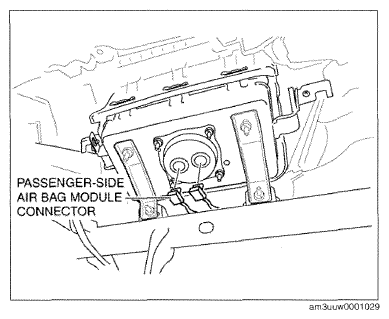

Fig 5: Identifying Passenger-Side Air Bag Module Connector

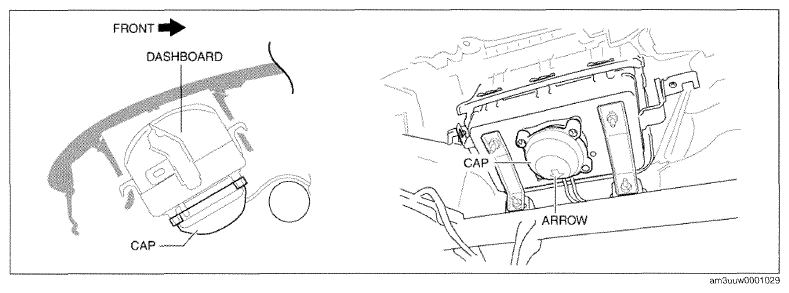

Fig 6: Installing Cap Of Passenger-Side Air Bag Module
Install the following parts:
1. Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
2. Front side trim (passenger-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Front scuff plate (passenger-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
5. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
6. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Switch the ignition ON (engine off or on).
Verify that the air bag system warning light illuminates for approx. 6 s and turns off.
- If the air bag system warning light does not operate, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
