SAS Control Module Connector Cover Removal/Installation [Two-Step Deployment Control System]: Installation

Install the SAS control module connector cover to the SAS control module connector.

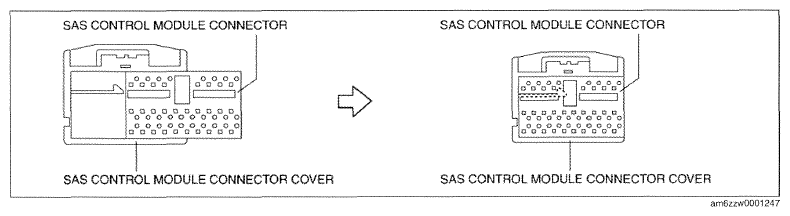

Fig 1: Installing SAS Control Module Connector Cover To SAS Control Module Connector
Connect the SAS control module connectors.

Fig 2: Connecting SAS Control Module Connectors With Torque Specifications
Install the SAS control module.
Install the nuts.
Install the bracket.
Install the bolts.
Install the following parts:
1. Parking brake lever. (See PARKING BRAKE LEVER REMOVAL/INSTALLATION .)
2. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
3. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)

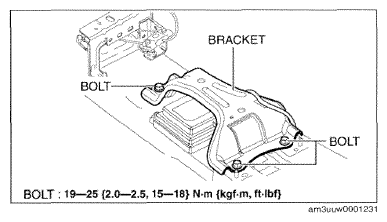

  Fig 3: SAS Control Module Bracket And Bolts With Torque Specifications
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Switch the ignition ON (engine off or on).
Verify that the air bag/front seat belt pre-tensioner system warning light turns on for approx. 6 s and turns off.
- If the air bag/front seat belt pre-tensioner system warning light does not operate properly, refer to the on-board diagnostic system and inspect the system. (See FLOWCHART [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
