Steering Shift Switch Component Removal Note

  1. Disconnect the steering shift switch wiring harness connector.

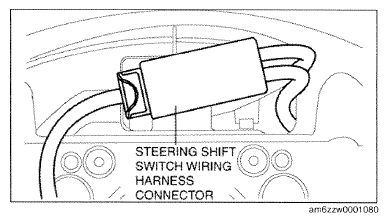

    Fig 1: Identifying Steering Shift Switch Wiring Harness Connector
    G09783137Courtesy of MAZDA MOTORS CORP.
  2. Detach the tabs of the cover in the area circled by a dashed line and open the cover.

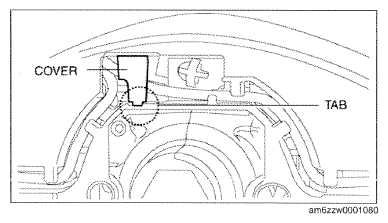

    Fig 2: Identifying Tab And Cover
    G09783138Courtesy of MAZDA MOTORS CORP.
  3. Using a precision flathead screwdriver, release the tab.

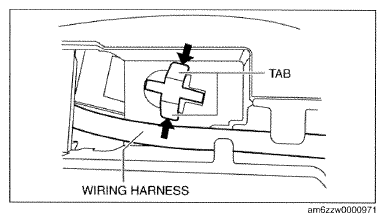

    Fig 3: Locating Tab
    G09783139Courtesy of MAZDA MOTORS CORP.
  4. Remove the steering shift switch component from the gap in the opening of the cover.
  5. Install in the reverse order of removal.

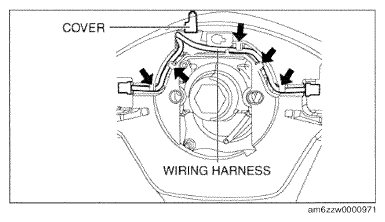

    Fig 4: Locating Gap Of Steering Shift Switch
    G09783140Courtesy of MAZDA MOTORS CORP.
