Automatic transaxle 1

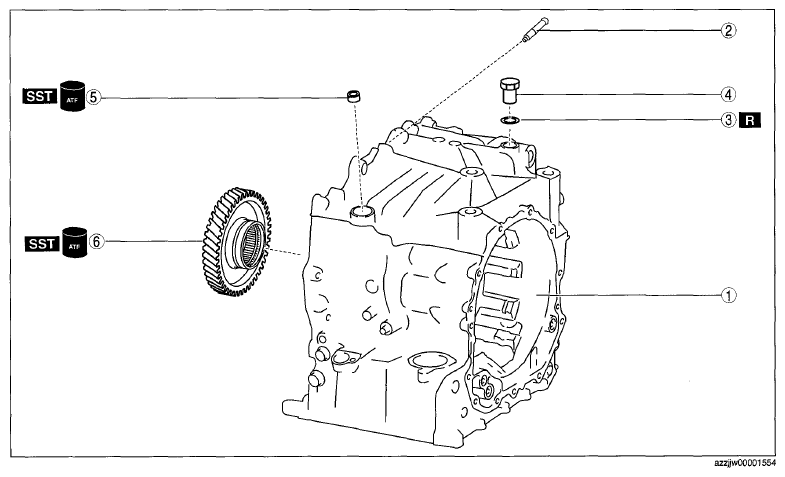

Fig 1: Structural View Of Automatic Transaxle 1
G08347126Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Transaxle case
2 Breather pipe
3 Gasket
4 Plug (M18x1.5 bolt, length to approx. 21.5 mm {0.846 in})
5 Radial needle bearing
6 Primary gear
