Automatic transaxle 6

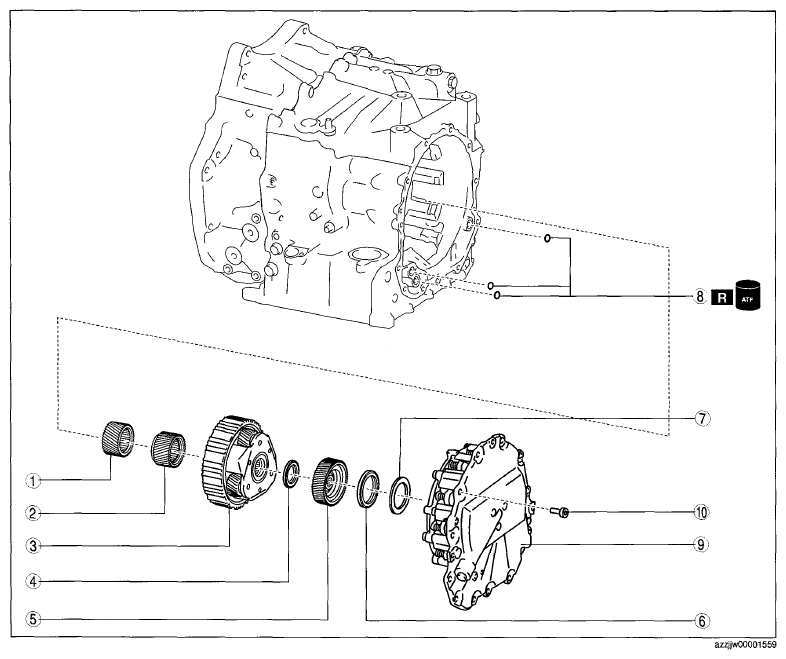

COMPONENT DESCRIPTION
| 1 | Front sun gear |
| 2 | Rear sun gear |
| 3 | Rear planetary gear |
| 4 | Thrust needle bearing (outer diameter approx. 44 mm {1.7 in}) |
| 5 | Reduction sun gear |
| 6 | Thrust needle bearing (outer diameter approx. 61.5 mm {2.42 in}) |
| 7 | Shim (outer diameter approx. 59.5 mm {2.34 in}) (selection) |
| 8 | O-ring (outer diameter approx. 15.6 mm {0.614 in}, thickness approx. 2.4 mm {0.094 in}) |
| 9 | End cover component |
| 10 | 12 bolts * (M8x1.25 bolt, length to approx. 21 mm {0.83 in}) |
* Of the 12 bolts, 2 are applied with sealant
