Structural View

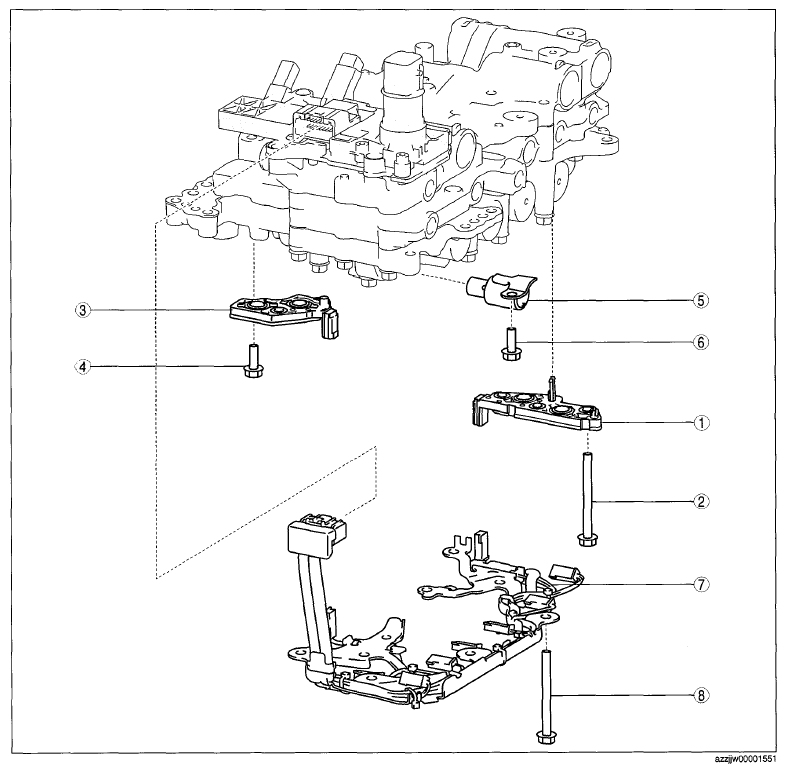

Fig 1: Identifying Control Valve Body Assembly Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Oil pressure switch A
2	3 bolts (M6x1.0 bolt, length to approx. 60 mm {2.4 in})
3	Oil pressure switch B
4	2 bolts (M6x1.0 bolt, length to approx. 60 mm {2.4 in}) 1 bolt (M6x1.0 bolt, length to approx. 16 mm {0.63 in})
5	ON/OFF solenoid
6	Bolt (M6x1.0 bolt, length to approx. 16 mm {0.63 in})
7	Coupler component
8	6 bolts (M6x1.0 bolt, length to approx. 80 mm {3.1 in}) 1 bolt (M6x1.0 bolt, length to approx. 60 mm {2.4 in}) 1 bolt (M6x1.0 bolt, length to approx. 16 mm {0.63 in})
