Description example

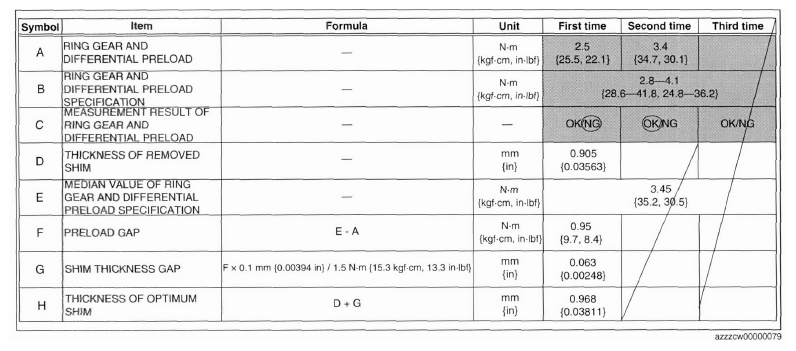

Fig 1: Ring Gear And Differential Preload Measurement/Adjustment Description Example
G08347510Courtesy of MAZDA MOTORS CORP.
