DTC P0520 00: Oil Pressure Switch Circuit Problem: Notes
DTC P0520 00 DETECTION CONDITIONS AND POSSIBLE CAUSES (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
| DTC P0520:00 |
Oil pressure switch circuit problem |
| DETECTION CONDITION |
- The oil pressure switch is off for a continuous 5 s
even though the engine is stopped.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2) is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- Oil pressure switch connector or terminals malfunction
- PCM connector or terminals malfunction

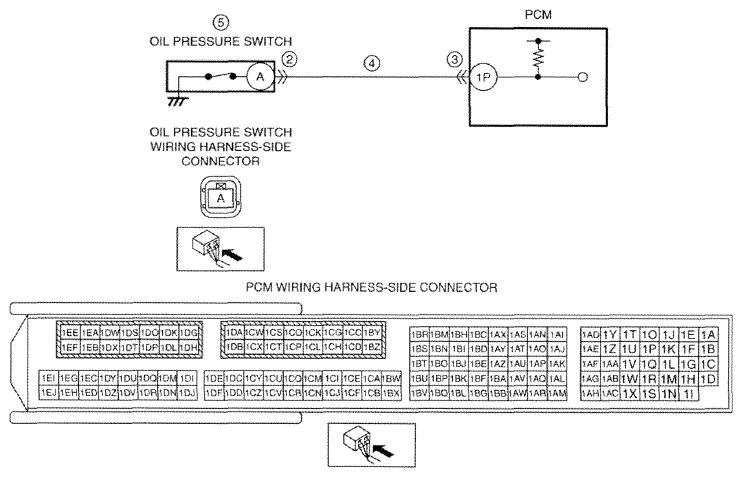

- Open circuit in wiring harness between oil pressure switch terminal A and PCM terminal 1P
- Oil pressure switch malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
