TCM And Start Stop Unit Connector End View

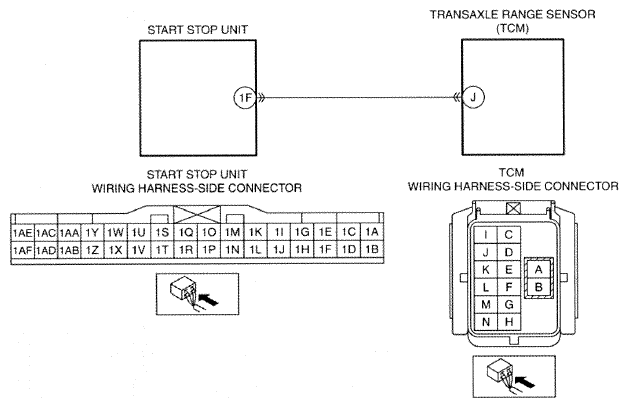

Fig 1: TCM And Start Stop Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
