Pin Assembly Note

  1. Install a new pin as shown in the figure to hold the pinion gear shaft.

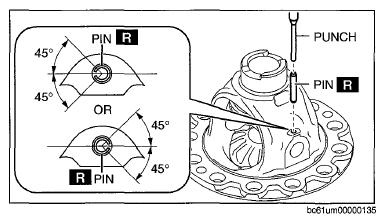

    Fig 1: Installing Pin For Holding Pinion Gear Shaft
    G08347917
