Primary Shaft Component Assembly: Notes

  1. Assemble the primary shaft component using the procedure shown in the figure.

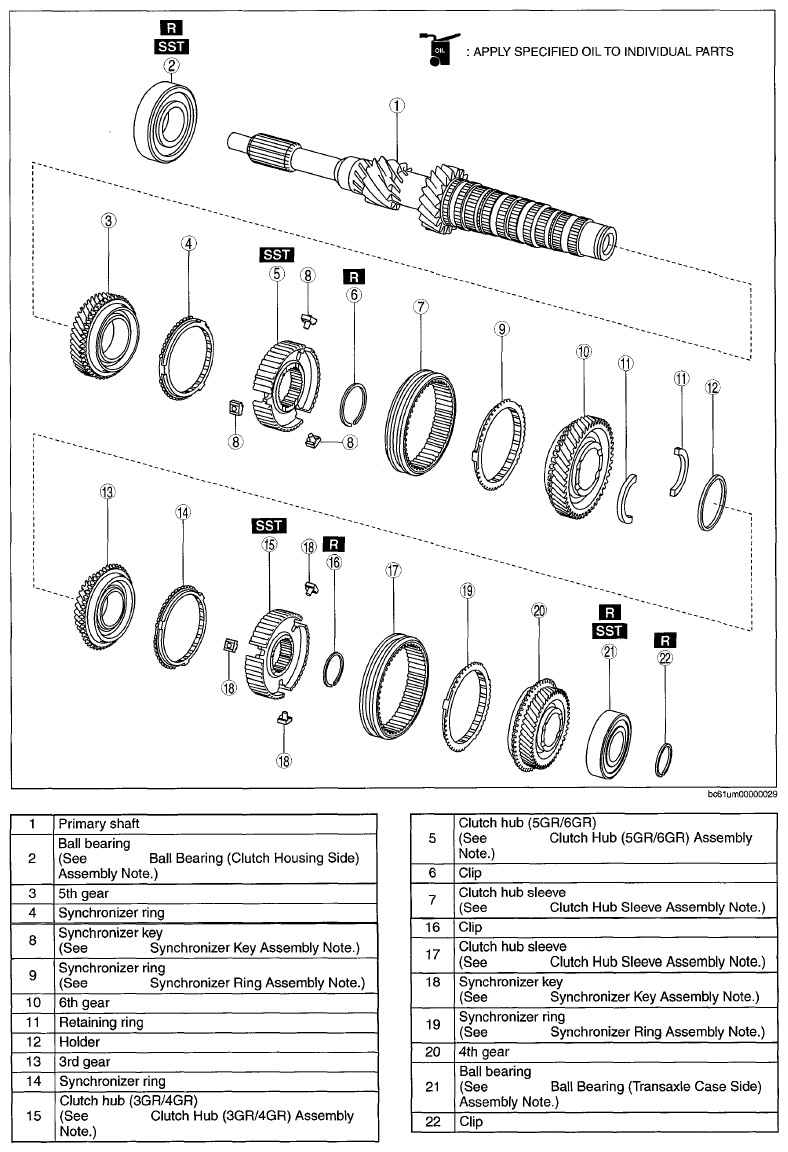

    Fig 1: Identifying Primary Shaft Component Assembling Order
    G08347857
