Synchronizer Ring (Secondary 1st Gear) Assembly Note

  1. Assemble the synchronizer ring so that the synchronizer ring projection and the cavity of the inner cone ring are engaged as shown in the figure.
  2. Verify that the ends of the inner cone ring, middle cone ring, and synchronizer ring are arranged in a flat plane.

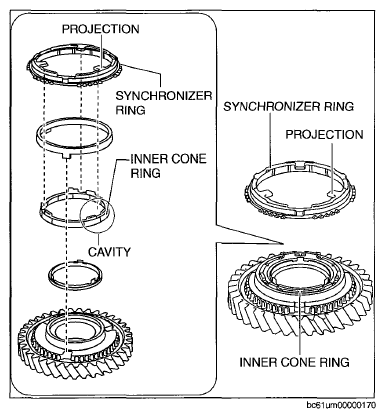

    Fig 1: Identifying Inner Cone Ring, Middle Cone Ring And Synchronizer Ring
    G08347881
