Synchronizer Ring (Secondary 2nd Gear) Assembly Note

  1. Assemble the synchronizer ring so that the synchronizer ring projection and round groove of the clutch hub are engaged as shown in the figure.

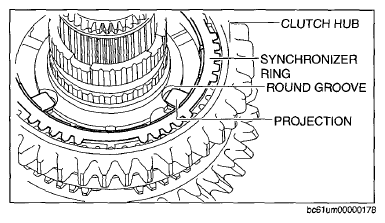

    Fig 1: Identifying Synchronizer Ring, Synchronizer Ring Projection And Round Groove Of Clutch Hub
    G08347891
