Clip Assembly Note

  1. Move the guide pin to the position shown in the figure for the guide plate.
  2. Push down the spring seat by hand.
  3. Assemble the clip.

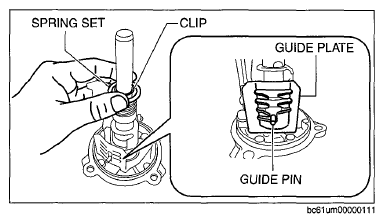

    Fig 1: Pushing Down Spring Seat By Hand
    G08347830
