Shift Control Module Assembly: Notes

  1. Assemble the shift control module using the procedure shown in the figure.

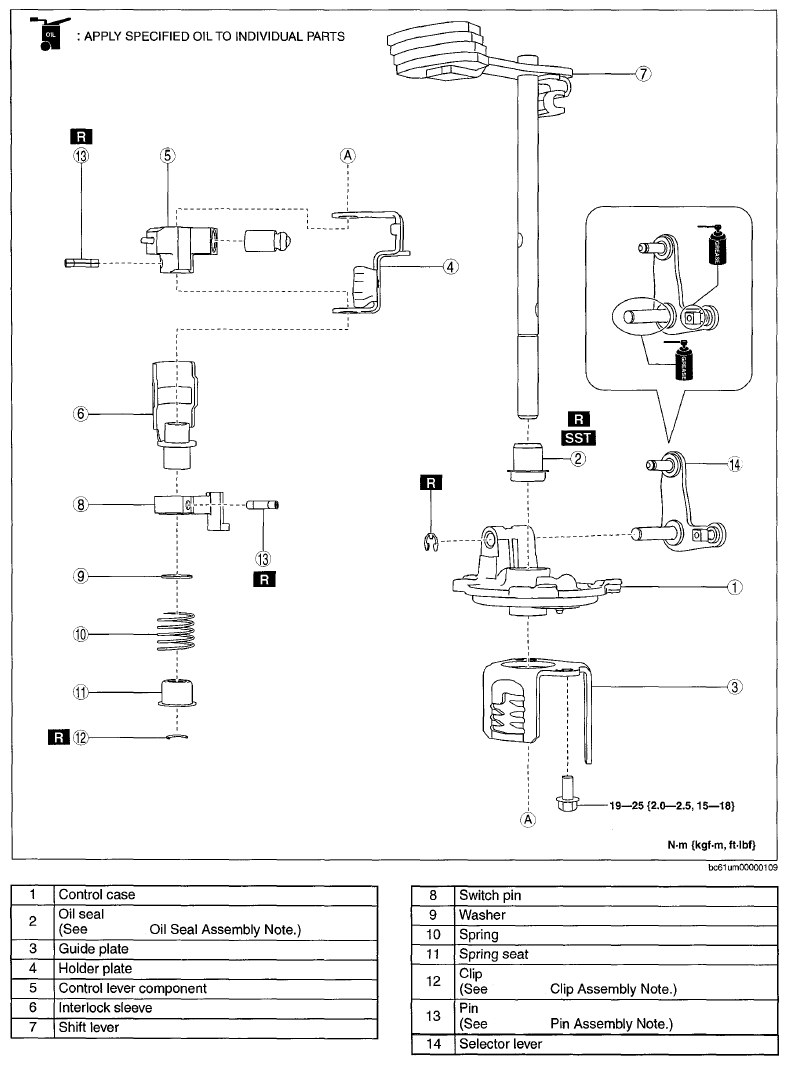

    Fig 1: Shift Control Module Assembling Order With Torque Specifications
    G08347828
