Oil Seal Assembly Note

  1. Assemble a new oil seal to the control case using the SST.

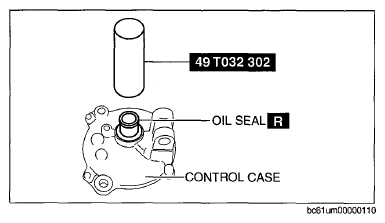

    Fig 1: Assembling Oil Seal To Control Case Using SST
    G08347829
