Pin Assembly Note

Secure the shift control module in a vise.

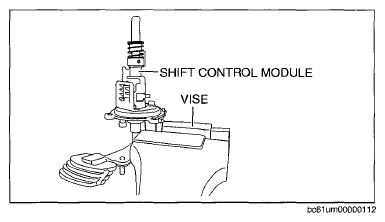

Fig 1: Securing Shift Control Module In Vise
Align the switch pin and interlock sleeve markings.

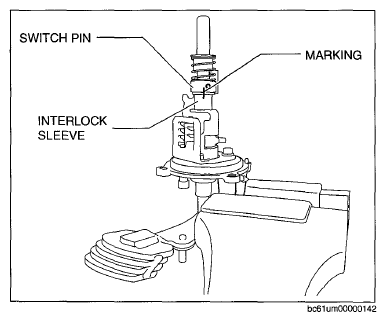

Fig 2: Aligning Switch Pin And Interlock Sleeve Markings
Assemble a new pin (switch pin) using a punch.

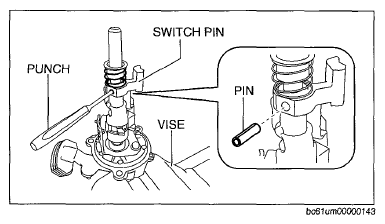

Fig 3: Assembling Pin (Switch Pin) Using Punch
Move the control lever component to set the guide pin to the 5GR position of the guide plate.

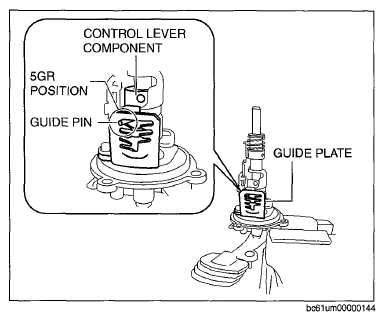

Fig 4: Identifying Guide Pin And 5GR Position
Assemble a new pin (control lever component) using a punch.

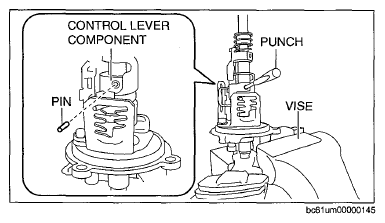

Fig 5: Assembling Pin (Control Lever Component) Using Punch
