Shift Control Module Disassembly: Notes

  1. Disassemble the shift control module in the order shown in the figure.

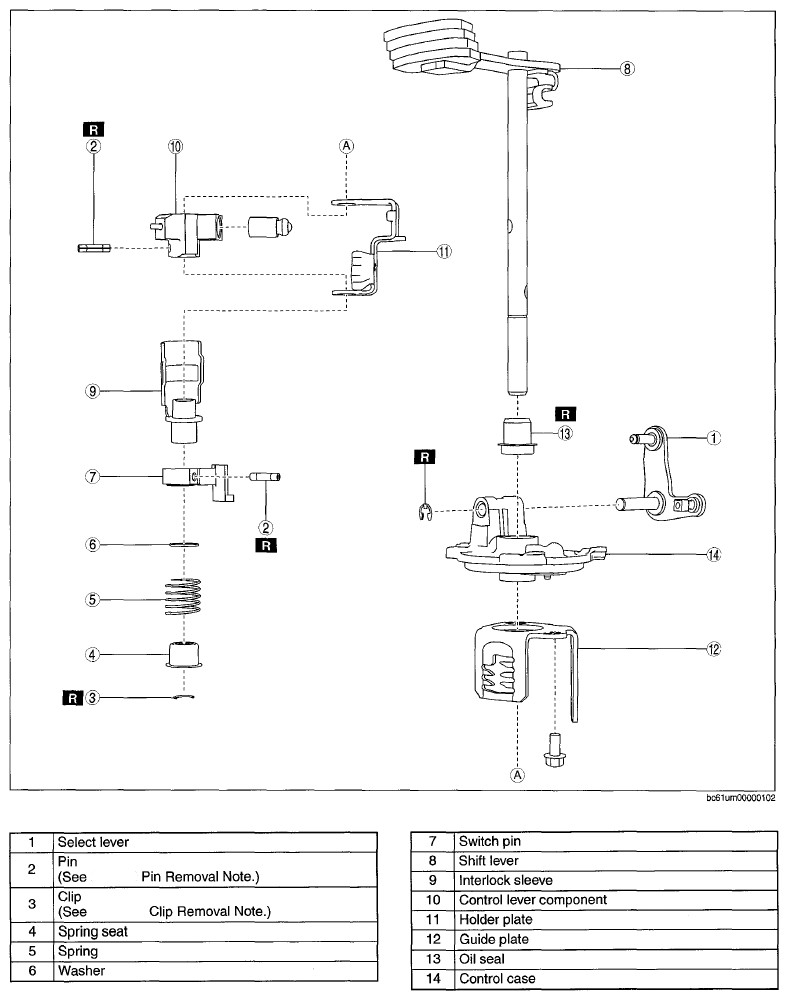

    Fig 1: Identifying Shift Control Module Disassembling Order
    G08347821
