Pin Removal Note

  1. Secure the shift control module in a vise.

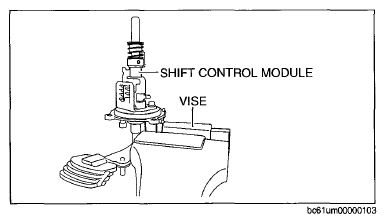

    Fig 1: Securing Shift Control Module In Vise
    G08347822
  2. Mark the switch pin and interlock sleeve.
    NOTE:
    • The switch pin has a particular installation direction.

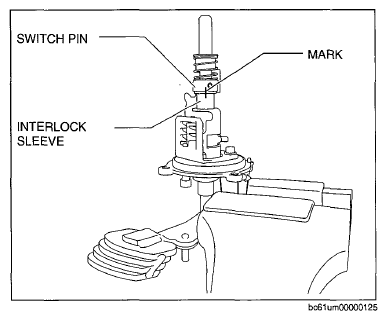

    Fig 2: Identifying Switch Pin And Interlock Sleeve Mark Position
    G08347823
  3. Remove the pin (switch pin) using a punch.

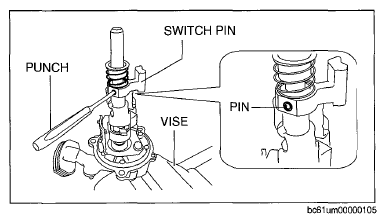

    Fig 3: Removing Pin (Switch Pin) Using Punch
    G08347824
  4. Move the shift lever to set the guide pin to the 5GR position of the guide plate.

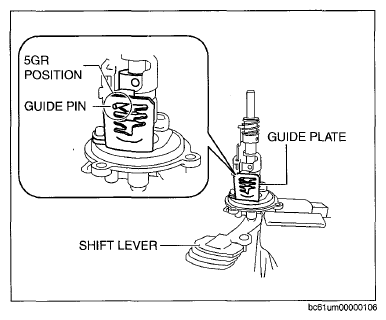

    Fig 4: Identifying Guide Pin 5GR Position
    G08347825
  5. Remove the pin (control lever component) using a punch.

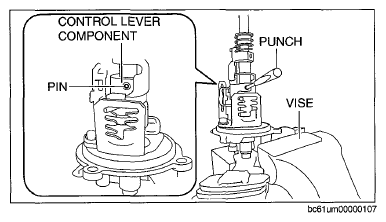

    Fig 5: Removing Pin (Control Lever Component) Using Punch
    G08347826
