Step 2: Notes

  1. Assemble the parts around the MTX in the order shown in the figure.

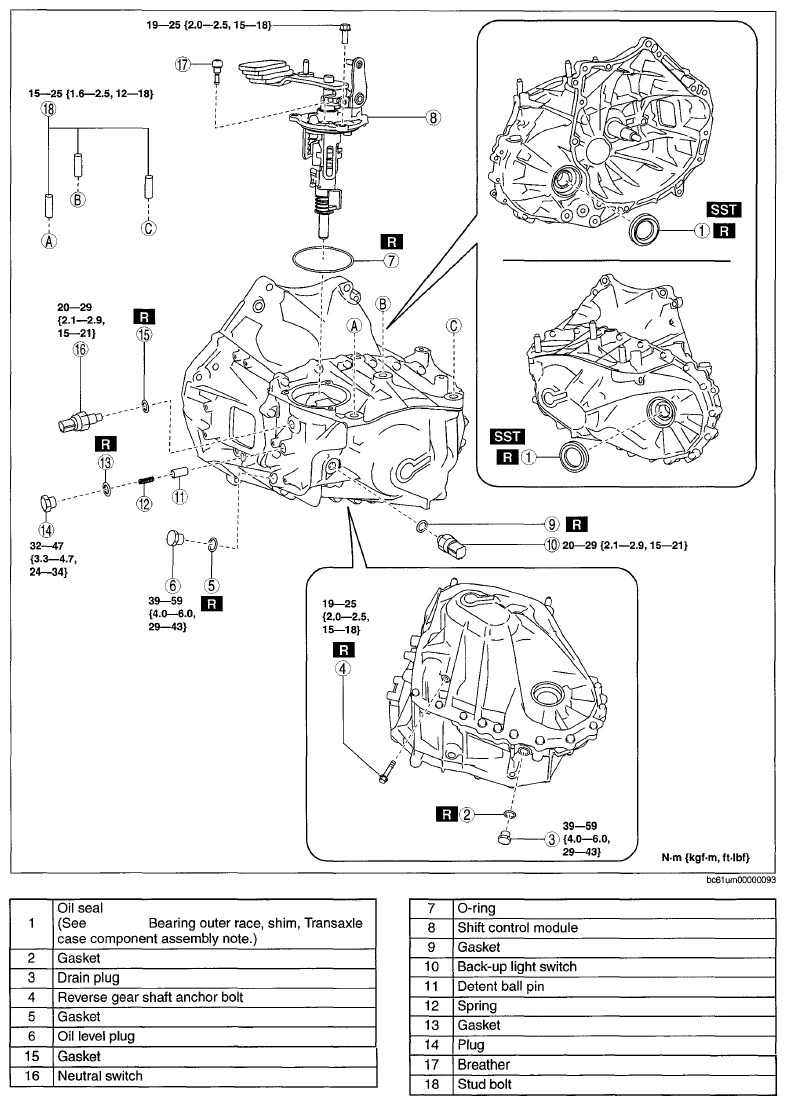

    Fig 1: MTX Parts Assembling Order With Torque Specifications
    G08347967
