Back-Up Light Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the battery component. (ex: battery, battery tray) (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Disconnect the back-up light switch connector.
  4. Verify that the continuity between the back-up light switch terminals is as indicated in the table.
    Fig 1: Identifying Back-Up Light Switch Terminals Circuit
    G08153345Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the back-up light switch.

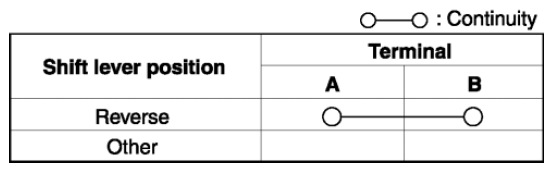

      Fig 2: Back-Up Light Switch Terminals Continuity Table
      G08153346Courtesy of MAZDA MOTORS CORP.
